Brushed Coreless Motor Series

Choose the appropriate motor platform based on size and output requirements.

Series Diameter Typical Features
10 Series Ø10 mm Ultra compact
12 Series Ø12 mm Light weight
13 Series Ø13 mm High efficiency
15 Series Ø15 mm Higher torque
22 Series Ø22 mm Heavy-duty applications
… Series Ø47.. mm ect

FA-1015R

· Out diameter（mm）：10
· Length（mm）：15
· Max transmission power（W） ：0.5
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1015R brushed coreless motor for compact automation

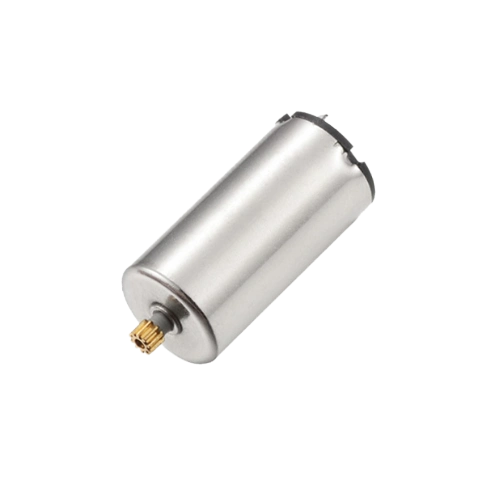

FA-1020R

· Out diameter（mm）：10
· Length（mm）：20
· Max transmission power（W） ：1
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1020R brushed coreless motor for precision automation

FA-1024R

· Out diameter（mm）：10
· Length（mm）：24
· Max transmission power（W） ：1.2
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1024R brushed coreless motor for compact automation

FA-1213R

· Out diameter（mm）：12
· Length（mm）：13
· Max transmission power（W） ：0.5
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1213R brushed coreless motor for compact automation

FA-1215R

· Out diameter（mm）：12
· Length（mm）：15
· Max transmission power（W） ：1.5
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1215R brushed coreless motor for compact automation

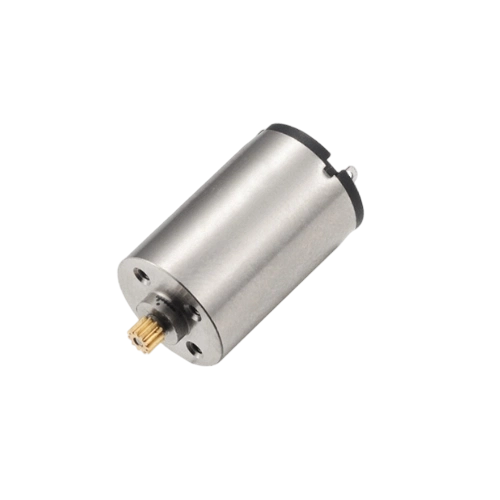

FA-1218R

· Out diameter（mm）：12
· Length（mm）：18
· Max transmission power（W） ：0.75
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1218R brushed coreless motor for compact automation

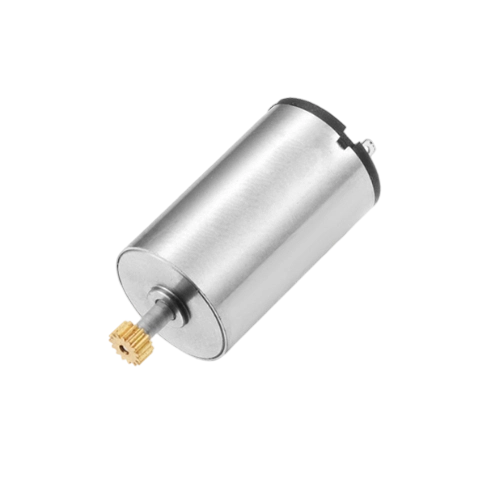

FA-1220R

· Out diameter（mm）：12
· Length（mm）：20
· Max transmission power（W） ：1.5
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1220R brushed coreless motor for compact automation

FA-1223R

· Out diameter（mm）：12
· Length（mm）：23
· Max transmission power（W） ：2.8
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1223R brushed coreless motor for compact automation

FA-1230R

· Out diameter（mm）：12
· Length（mm）：30
· Max transmission power（W） ：2.5
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1230R brushed coreless motor for compact automation

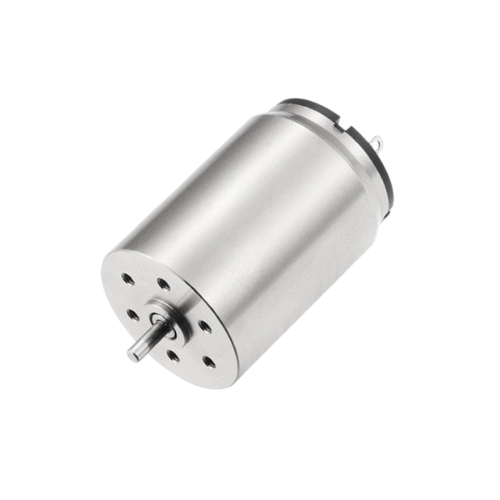

FA-1320R

· Out diameter（mm）：13
· Length（mm）：20
· Max transmission power（W） ：2
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1320R brushed coreless motor for compact automation

FA-1328R

· Out diameter（mm）：13
· Length（mm）：28
· Max transmission power（W） ：2.5
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1328R brushed coreless motor for compact automation

FA-1332R

· Out diameter（mm）：13
· Length（mm）：32
· Max transmission power（W） ：2.5
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1332R brushed coreless motor for compact automation

FA-1515R

· Out diameter（mm）：15
· Length（mm）：15
· Max transmission power（W） ：2.5
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1515R brushed coreless motor for compact automation

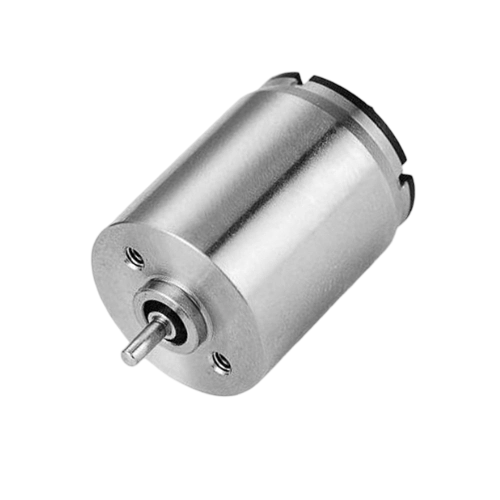

FA-1620R

· Out diameter（mm）：16
· Length（mm）：20
· Max transmission power（W） ：2.5
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1620R brushed coreless motor for compact automation

FA-1625R

· Out diameter（mm）：16
· Length（mm）：25
· Max transmission power（W） ：4
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1625R brushed coreless motor for compact automation

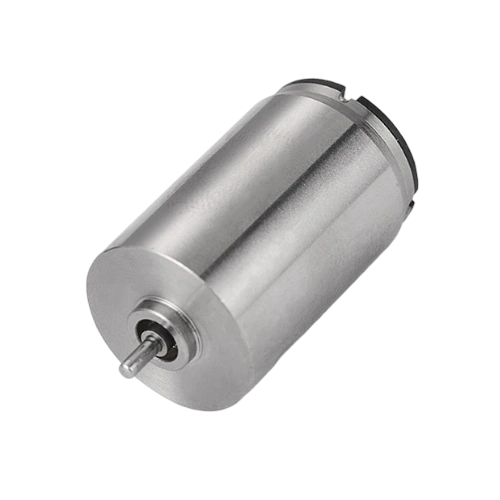

FA-1628R

· Out diameter（mm）：16
· Length（mm）：28
· Max transmission power（W） ：5
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Ball bearing
FA-1628R brushed coreless motor for compact automation

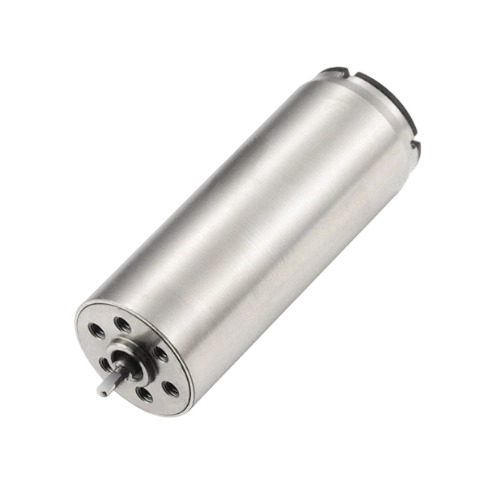

FA-1642R

· Out diameter（mm）：16
· Length（mm）：42
· Max transmission power（W） ：4.5
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1642R brushed coreless motor for compact automation

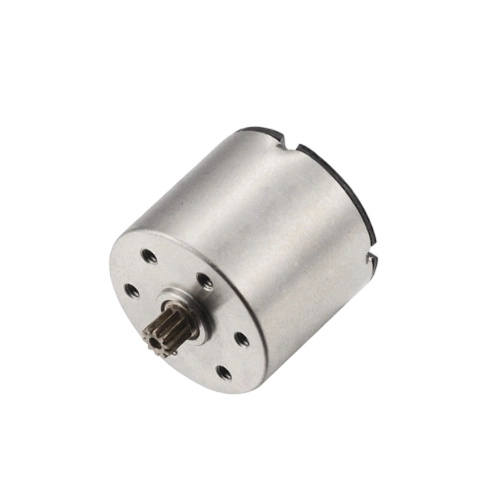

FA-1715R

· Out diameter（mm）：17
· Length（mm）：15
· Max transmission power（W） ：3
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1715R brushed coreless motor for compact automation

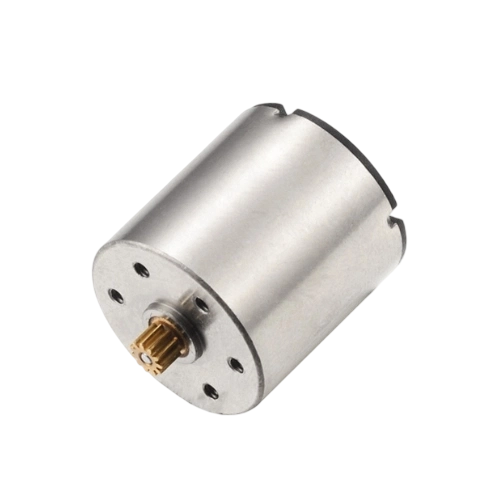

FA-1718R

· Out diameter（mm）：17
· Length（mm）：18
· Max transmission power（W） ：3.5
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1718R brushed coreless motor for compact automation

FA-1722R

· Out diameter（mm）：17
· Length（mm）：22
· Max transmission power（W） ：5
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1722R brushed coreless motor for compact automation

FA-1725R(2.0 axis)

· Out diameter（mm）：17
· Length（mm）：25
· Max transmission power（W） ：5
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Ball bearing
FA-1725R(2.0 axis) brushed coreless motor for compact automation

FA-1725R (For Nail Art)

· Out diameter（mm）：17
· Length（mm）：25
· Max transmission power（W） ：6
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1725R (For Nail Art) brushed coreless motor for compact automation

FA-1725R (For Tattoo)

· Out diameter（mm）：17
· Length（mm）：25
· Max transmission power（W） ：4
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-1725R (For Tattoo) brushed coreless motor for compact automation

FA-2016R

· Out diameter（mm）：20
· Length（mm）：16
· Max transmission power（W） ：3
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Ball bearing
FA-2016R brushed coreless motor for compact automation

FA-2025R

· Out diameter（mm）：20
· Length（mm）：25
· Max transmission power（W） ：5
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Ball bearing
FA-2025R brushed coreless motor for compact automation

FA-2225R

· Out diameter（mm）：22
· Length（mm）：25
· Max transmission power（W） ：5
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-2225R brushed coreless motor for compact automation

FA-2232R

· Out diameter（mm）：22
· Length（mm）：32
· Max transmission power（W） ：5
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-2232R brushed coreless motor for compact automation

FA-2249R

· Out diameter（mm）：22
· Length（mm）：49
· Max transmission power（W） ：10
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Oil bearing
FA-2249R brushed coreless motor for compact automation

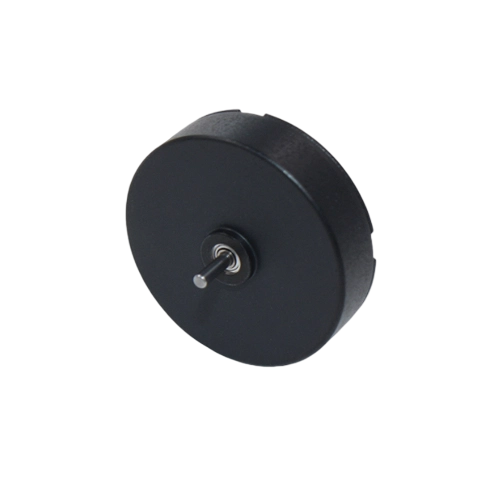

FA-2607R

· Out diameter（mm）：26
· Length（mm）：07
· Max transmission power（W） ：3
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Ball bearing
FA-2607R brushed coreless motor for compact automation

FA-2610R

· Out diameter（mm）：26
· Length（mm）：10
· Max transmission power（W） ：3
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Ball bearing
FA-2610R brushed coreless motor for compact automation

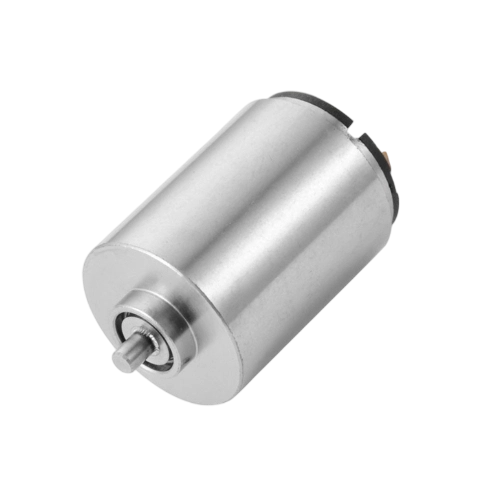

FA-2230RC

· Out diameter（mm）：22
· Length（mm）：30
· Max transmission power（W） ：10
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Ball bearing
FA-2230RC brushed coreless motor for precision automation

FA-2643RC

· Out diameter（mm）：26
· Length（mm）：43
· Max transmission power（W） ：25
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Ball bearing
FA-2643RC brushed coreless motor for precision automation

FA-3265RC

· Out diameter（mm）：32
· Length（mm）：35
· Max transmission power（W） ：50
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Ball bearing
FA-3265RC brushed coreless motor for precision automation

FA-3553RC

· Out diameter（mm）：35
· Length（mm）：53
· Max transmission power（W） ：40
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Ball bearing
FA-3553RC brushed coreless motor for precision automation

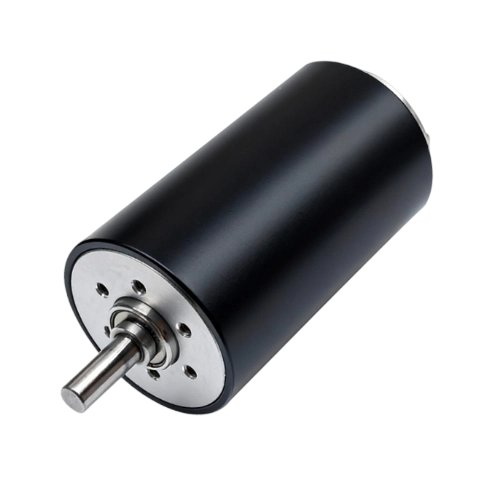

FA-3570RC

· Out diameter（mm）：35
· Length（mm）：70
· Max transmission power（W） ：70
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Ball bearing
FA-3570RC brushed coreless motor for precision automation

FA-4070RC

· Out diameter（mm）：40
· Length（mm）：70
· Max transmission power（W） ：110
· Environment tempeture（℃) ：-20~+80
· Bearing Type：Ball bearing
FA-4070RC brushed coreless motor for precision automation

Brushed Coreless Motors

Compact Power for Precision Motion

FingerAct brushed coreless motors combine low inertia, fast response, and reliable performance for precision motion applications. Designed for medical devices, dental systems, robotics, beauty equipment, and industrial OEM projects.

Engineer performing dental motor inspection on production line for OEM manufacturing

Why Choose Brushed Coreless Motors?

Brushed coreless motors provide smooth starting torque, simple control, and compact construction. They are ideal for applications requiring precise speed control, lightweight design, and cost-effective motion solutions without external drive electronics.

  • Low inertia for fast acceleration

  • High efficiency and smooth operation

  • Compact and lightweight design

  • Stable performance

  • Wide voltage options

  • OEM customization available

Why FingerAct?

OEM Customization

Motor parameters can be customized according to your application.

Reliable production with consistent quality control.

Engineering assistance from concept to production.

Prototype support for product development.

Supply Serving customers worldwide in medical, industrial, and precision motion markets.

Engineering drawings and technical documentation are available for selected models.

Frequently Asked Questions

Do you provide technical drawings?2026-06-29T09:56:10+00:00

Yes. CAD drawings, specifications, and engineering documents are available for selected products.

Can FingerAct customize brushed coreless motors?2026-06-29T09:55:49+00:00

Yes. We provide OEM customization including voltage, winding, shaft design, cables, connectors, and performance optimization.

What is the advantage of a coreless motor?2026-06-29T09:55:29+00:00

Coreless motors deliver faster acceleration, lower vibration, higher efficiency, and better motion control than conventional iron-core motors.

What are brushed coreless motors used for?2026-06-29T09:55:07+00:00

They are widely used in dental equipment, medical devices, robotics, beauty instruments, electric tools, and laboratory equipment.

What is a brushed coreless motor?2026-06-29T09:54:35+00:00

A brushed coreless motor is a DC motor with an ironless rotor, providing low inertia, smooth operation, and fast response for precision applications.
