FA-1213R Coreless Brushed DC Motor

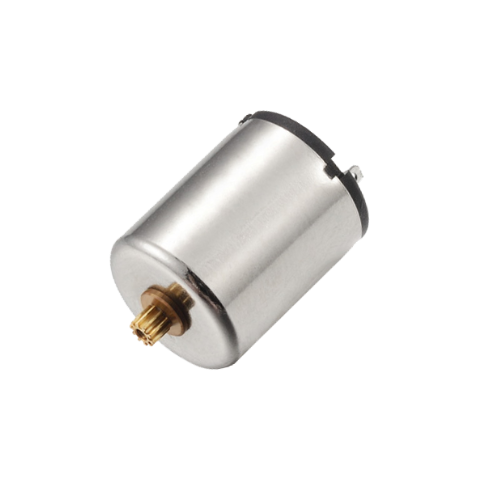

The FA-1213R is a compact 0.5W coreless brushed DC motor with Φ12mm diameter and 13.5mm body length, adopting precious metal brushes and iron-free coreless rotor for steady precision running.

• Dimension: Φ12mm × Length13.5mm
• Rated Power: 0.5W
• Voltage Options:3.0V/5.0V/7.4V/12V
• Precious metal brush & sleeve bearing
• Optional G12MF / G12XL gearbox and encoder

12×13.5mm 0.5W coreless brushed motor for precision miniature drive equipment

Mechanical Dimensions

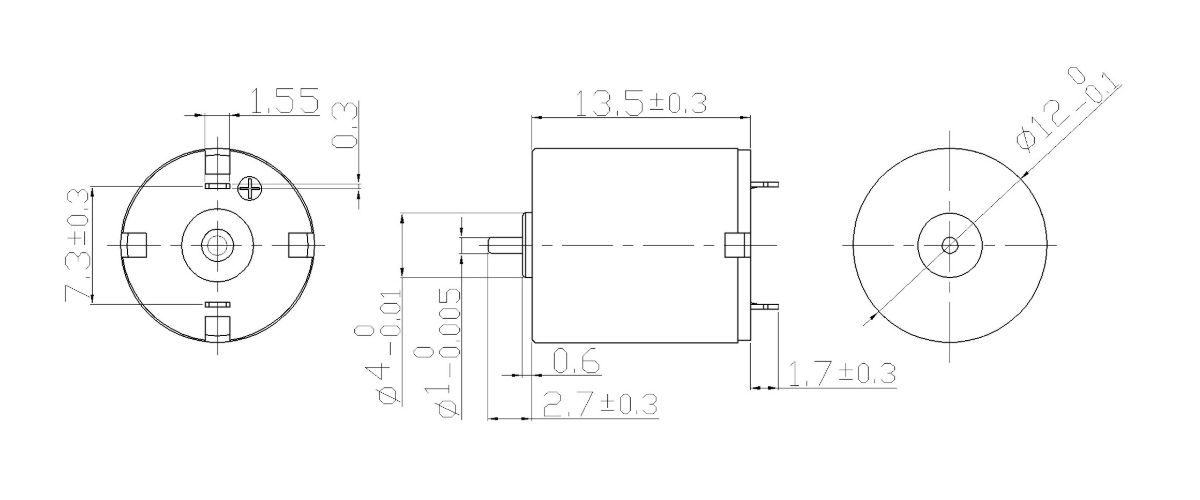

FA-1213R Φ12×13.5mm coreless brushed DC motor mechanical outline drawing

Dimensions are in mm. Please refer to the datasheet for tolerances and mounting details.

Performance Parameters

Motor specifications 06A 07A 04A 08A
Nominal voltage  V 3.0 5.0 7.4 12
No load speed rpm 9400 7900 18000 25000
No load current mA 15 12 20 30
Nominal speed rpm 7191 5865 13590 21437
Nominal torque mNm 0.27 0.25 0.55 0.12
Nominal current A 0.1 0.05 0.15 0.45
Stall torque mNm 1.1 1 2.2 3.1
Stall current A 0.37 0.16 0.57 0.69
Terminal resistance Ω 8.05 31.53 13 17.5
Torque constant mNm/A 2.98 5.92 3.84 4.49
Speed constant rpm/V 3133 1580 2432 2.83
Mechanical time constant ms 14.9 15.3 14.7 15.1
Rotor inertia gcm² 0.18 0.186 0.183 0.19

Optical Gearbox

Optional gearbox
 G12MF
G12XL

Optional encoder

N/A

Other Specifications

Other specifications
Operating temperature range -20…+80℃ Bearing type Sleeve bearings
Number of pole pairs 1 Brush type Precious metal brushes
Number of phases 5 Weight of motor 5.8g

Engineering Overview

With coreless iron-free rotor structure and 5-segment commutator paired with precious metal brushes, FA-1213R eliminates cogging torque to realize low vibration and quiet operation. It is available with two types of reduction gearboxes (G12MF/G12XL) and optional encoders to match diverse miniature precision drive projects.
Typical Applications:
• Handheld cosmetic precision devices
• Portable small medical instruments
• Micro precision liquid pumps
• Compact laboratory testing equipment

Need custom winding or different gearbox configuration?

FA-1213R has four standard voltage versions, we can pick G12MF or G12XL reducer and match encoders according to your installation space and torque needs.
