FA-1715R Coreless Brushed DC Motor

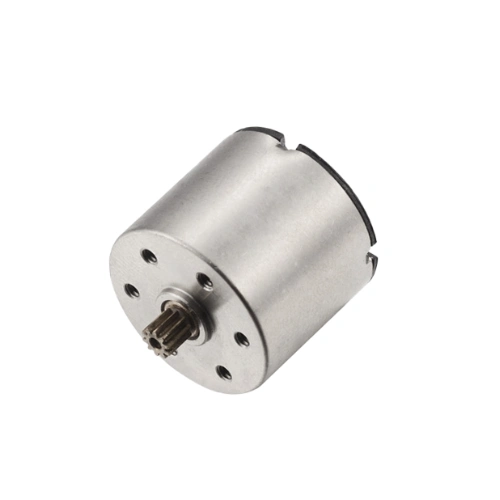

The FA-1715R is a 3W compact coreless brushed DC motor with Φ17mm outer diameter and 15.2mm short body. It adopts iron-free coreless rotor and premium precious metal brushes, delivering outstanding high-speed performance and stable torque output. With compact structure and lightweight design, it is ideal for space-constrained precision equipment.
• Dimension: Φ17mm × Length 15.2mm
• Rated Power: 3W
• Voltage Options:5.0V / 6.0V / 7.4V / 12.0V
• Precious metal brush & oil-impregnated sleeve bearing
• Optional gearbox and encoder for customized drive solutions

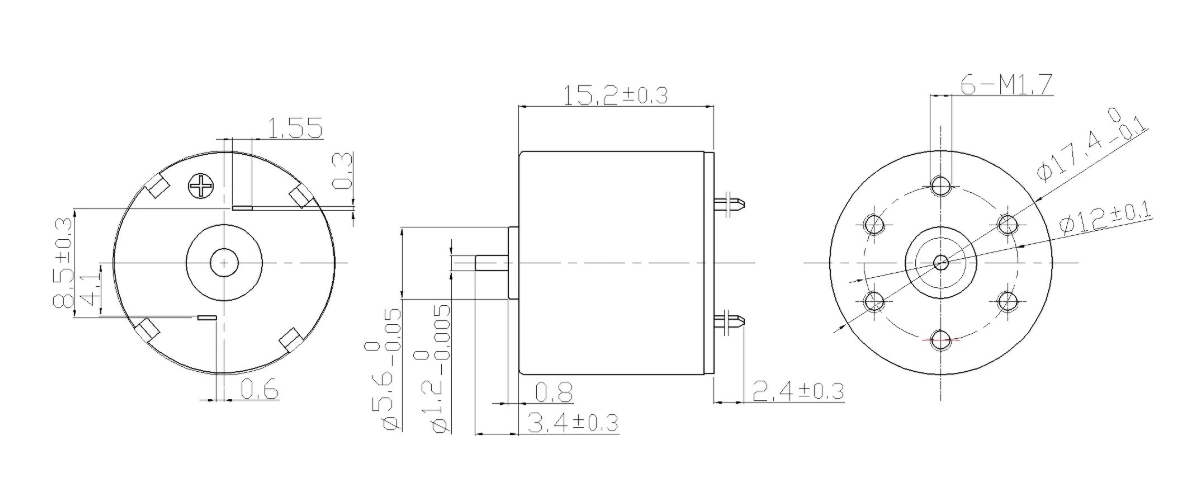

Mechanical Dimensions
Dimensions are in mm. Please refer to the datasheet for tolerances and mounting details.
Performance Parameters
| Motor specifications | 02A | 24A | 01A | 18A | |
|---|---|---|---|---|---|
| Nominal voltage | V | 5.0 | 6 | 7.4 | 12 |
| No load speed | rpm | 21900 | 24300 | 26000 | 14850 |
| No load current | mA | 70 | 65 | 65 | 15 |
| Nominal speed | rpm | 18396 | 18285 | 23270 | 11137 |
| Nominal torque | mNm | 1.56 | 1.25 | 1.26 | 1.46 |
| Nominal current | A | 0.77 | 0.58 | 0.52 | 0.2 |
| Stall torque | mNm | 9.6 | 5.0 | 12.0 | 5.8 |
| Stall current | A | 4.46 | 0.64 | 4.4 | 0.75 |
| Terminal resistance | Ω | 1.12 | 2.8 | 1.68 | 15.9 |
| Torque constant | mNm/A | 2.14 | 2.31 | 2.66 | 7.56 |
| Speed constant | rpm/V | 4380 | 4050 | 3513 | 1237 |
| Mechanical time constant | ms | 13.4 | 27.7 | 12.7 | 15 |
| Rotor inertia | gcm² | 0.594 | 0.576 | 0.586 | 0.589 |
Optical Gearbox
| N/A | |
|---|---|
Optional encoder
| N/A | |
|---|---|
Other Specifications
| Other specifications | |||
|---|---|---|---|
| Operating temperature range | -20…+80℃ | Bearing type | Sleeve bearings |
| Number of pole pairs | 1 | Brush type | Precious metal brushes |
| Number of phases | 5 | Weight of motor | 16g |
Engineering Overview
As a short-body model of the 17mm series, FA-1715R features a compact layout and excellent high-speed capability. The coreless rotor structure and 5-segment commutator paired with precious metal brushes effectively eliminate cogging torque, ensuring smooth and quiet operation during high-speed rotation. It has a wide range of mechanical time constants across different voltage versions, enabling flexible adaptation to diverse dynamic working conditions. Four mainstream voltage grades are available, and optional gearboxes and encoders can be equipped to adjust torque and realize precise control. Lightweight and space-saving, it is well-suited for highly integrated miniature drive systems.
Typical Applications:
• High-speed portable precision testing instruments
• Mini intelligent wearable drive components
• Compact beauty and cosmetic handheld tools
• Small laboratory precision transmission equipment
