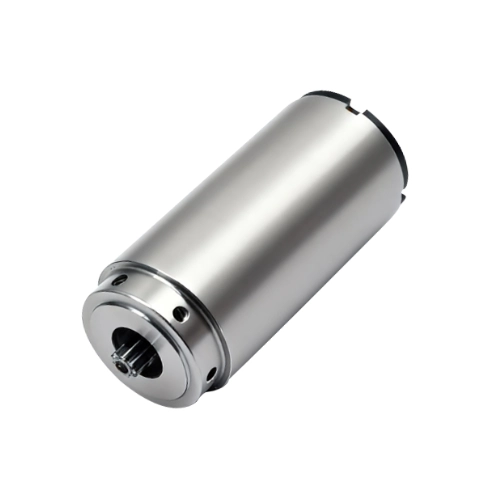

FA-1223R Coreless Brushed DC Motor

The FA-1223R is a high-power 2.8W coreless brushed DC motor with Φ12mm outer diameter and 22.6mm body length, built with iron-free coreless rotor and precious metal brushes for high-torque, stable low-vibration continuous precision operation.

• Dimension: Φ12mm × Length22.6mm
• Rated Power: 2.8W
• Voltage Options:3.0V /6.0V /7.0V /12.0V
• Precious metal brush & oil-impregnated sleeve bearing
• Optional G12MF & G12XL gearbox plus matching encoder

12×22.6mm 2.8W high torque coreless brushed motor for precision medical and cosmetic handheld equipment

Mechanical Dimensions

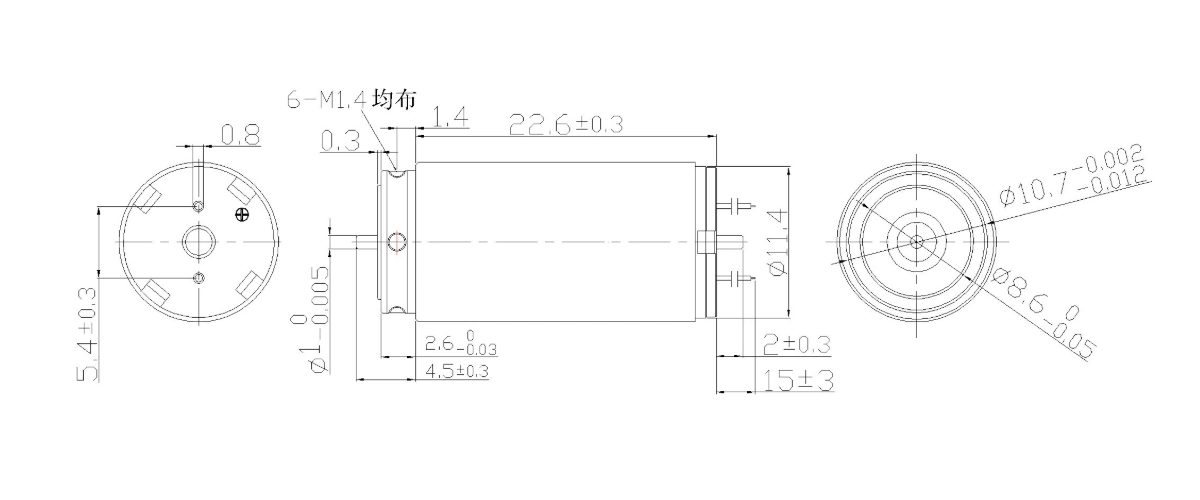

FA-1223R Φ12×22.6mm coreless brushed DC motor mechanical outline drawing

Dimensions are in mm. Please refer to the datasheet for tolerances and mounting details.

Performance Parameters

Motor specifications 04A 03A 01A 05A
Nominal voltage  V 3.0 6.0 7.0 12.0
No load speed rpm 13000 20000 18000 25000
No load current mA 25 60 25 75
Nominal speed rpm 9782 13545 13545 18812
Nominal torque mNm 1.6 2.53 2.53 3.66
Nominal current A 0.75 0.7 0.7 0.85
Stall torque mNm 6.0 9.8 9.8 14.5
Stall current A 2.94 2.76 2.76 3.23
Terminal resistance Ω 1.02 1.72 2.54 3.71
Torque constant mNm/A 2.16 2.8 3.64 4.49
Speed constant rpm/V 4333 3333 2571 2083
Mechanical time constant ms 6.2 6.5 5.9 5.6
Rotor inertia gcm² 0.31 0.325 0.333 0.33

Optical Gearbox

Optional gearbox
G12MF
G12XL

Optional encoder

N/A

Other Specifications

Other specifications
Operating temperature range -20…+80℃ Bearing type Sleeve bearings
Number of pole pairs 1 Brush type Precious metal brushes
Number of phases 5 Weight of motor 12.88g

Engineering Overview

Equipped with iron-free coreless rotor and 5-segment commutator paired with precious metal brushes, FA-1223R eliminates cogging torque and delivers outstanding high-torque output under limited space. Low rotor inertia brings fast acceleration & deceleration response, while optional G12MF/G12XL gearboxes and encoders can further boost torque and realize closed-loop precision control for high-load compact equipment.

Typical Applications:
• High-load handheld precision medical surgical instruments
• High-power professional beauty & cosmetic driving devices
• High-pressure micro precision fluid transfer pumps
• Industrial miniature lab testing analytical equipment

Need high torque custom winding or gearbox ratio optimization?

FA-1223R is our 2.8W high-power coreless series with four standard voltage grades, our engineers customize coil parameters and select proper G12MF/G12XL reducers to satisfy your high-torque and heavy-load application requirements.
