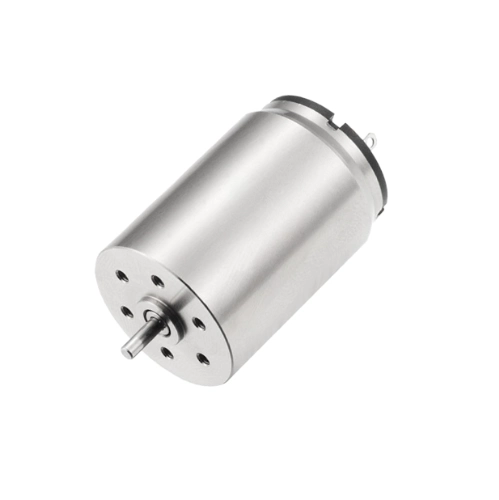

FA-2232R Coreless Brushed DC Motor
The FA-2232R is a 5W long-body coreless brushed DC motor with Φ22mm outer diameter and 32mm body length. It adopts oil-impregnated sleeve bearings and premium precious metal brushes, featuring outstanding torque performance and stable continuous operation. This model is fully compatible with G22MF reduction gearbox and EM22 series incremental & absolute encoders. Four standard voltage versions from 6V to 24V are available, ideal for heavy-load industrial miniature drive systems.
• Dimension: Φ22mm × Length 32mm
• Rated Power: 5W
• Voltage Options: 6.0V / 7.4V / 12.0V / 24.0V
• Precious metal brush & oil-impregnated sleeve bearing
• Optional G22MF gearbox & EM22 multi-channel encoder

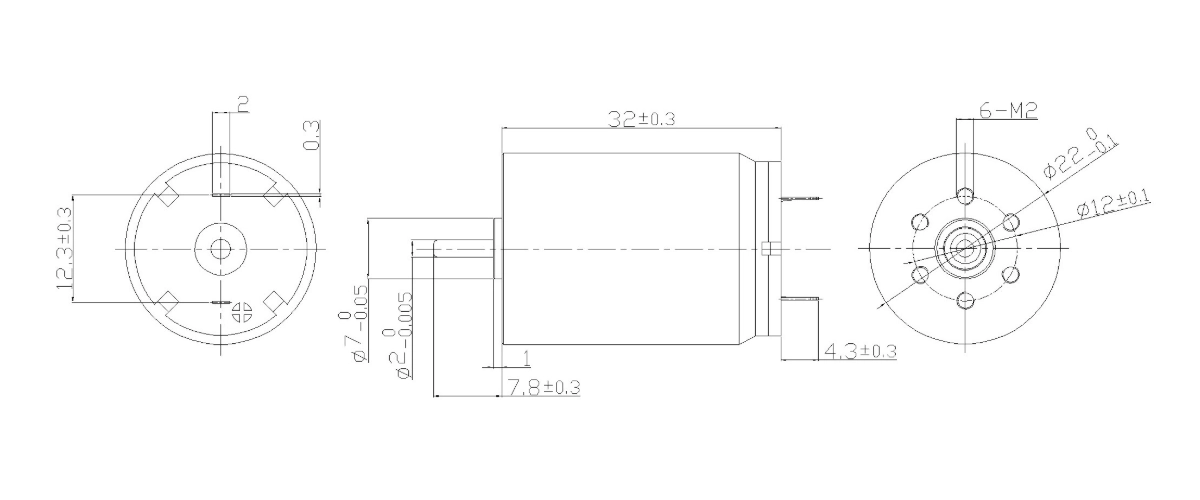

Mechanical Dimensions
Dimensions are in mm. Please refer to the datasheet for tolerances and mounting details.
Performance Parameters
| Motor specifications | 65A | 43A | 04A | 63A | |
|---|---|---|---|---|---|
| Nominal voltage | V | 6.0 | 7.4 | 12.0 | 24.0 |
| No load speed | rpm | 8100 | 8000 | 9900 | 8600 |
| No load current | mA | 50 | 30 | 45 | 20 |
| Nominal speed | rpm | 6459 | 6380 | 8761 | 6450 |
| Nominal torque | mNm | 8.19 | 8.27 | 8.28 | 13.57 |
| Nominal current | A | 1.2 | 0.96 | 0.75 | 0.52 |
| Stall torque | mNm | 40.1 | 40.3 | 71.6 | 54.1 |
| Stall current | A | 5.71 | 4.63 | 6.22 | 2.04 |
| Terminal resistance | Ω | 1.05 | 1.60 | 1.93 | 11.78 |
| Torque constant | mNm/A | 6.93 | 8.65 | 10.4 | 26.1 |
| Speed constant | rpm/V | 1350 | 1081 | 900 | 358 |
| Mechanical time constant | ms | 6.8 | 7.0 | 9.3 | 5.7 |
| Rotor inertia | gcm² | 3.4 | 3.56 | 3.46 | 3.61 |
Optical Gearbox
| Optional gearbox | |
|---|---|
| G22MF | |
Optional encoder
| Optional encoder | |
|---|---|
| EM22 | 增量式(Incremental) 1~1024ppr 1~3通道(channel) |
| EM22 | 绝对式(Absolute) 14 bit single turn |
Other Specifications
| Other specifications | |||
|---|---|---|---|
| Operating temperature range | -20…+80℃ | Bearing type | Sleeve bearings |
| Number of pole pairs | 1 | Brush type | Precious metal brushes |
| Number of phases | 5 | Weight of motor | 60.1g |
Engineering Overview
As an extended-length model of the 22mm series, FA-2232R features a longer rotor structure, bringing remarkable torque output and extreme stall torque, especially the 12V version delivers excellent load resistance. Adopting coreless design and 5-segment commutator with precious metal brushes, it eliminates cogging torque to realize smooth, low-noise operation. Equipped with oil-impregnated sleeve bearings, it ensures stable performance during long-term continuous work. It supports full-range voltage from 6V to 24V, and pairs perfectly with dedicated G22MF gearbox and multi-channel EM22 encoder to realize high-precision speed and position control. It is a reliable power choice for industrial heavy-load transmission and high-torque precision equipment.
Typical Applications:
• Industrial high-torque miniature actuators
• Heavy-load automated transmission mechanisms
• Large-flow high-pressure micro pumps
• 24V industrial professional precision drive devices
