FA-2016R Coreless Brushed DC Motor
The FA-2016R is a 3W coreless brushed DC motor with Φ20mm outer diameter and 16.3mm compact body. It adopts durable ball bearings and high-quality precious metal brushes. With large rotor inertia and stable output, it delivers consistent performance at low to medium speed. Multiple voltage versions are available, and it supports matched gearbox and encoder for customized precision drive solutions.
• Dimension: Φ20mm × Length 16.3mm
• Rated Power: 3W
• Voltage Options:6.0V / 8.0V / 12.0V / 12.0V
• Precious metal brush & heavy-duty ball bearings
• Optional customized gearbox and encoder

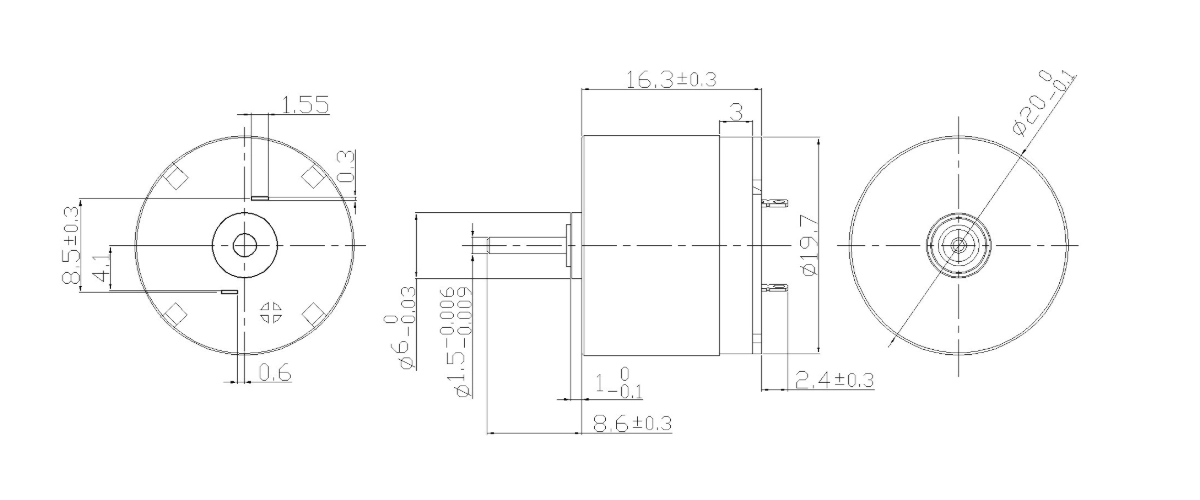

Mechanical Dimensions
Dimensions are in mm. Please refer to the datasheet for tolerances and mounting details.
Performance Parameters
| Motor specifications | 09A | 10A | 01A | 11A | |
|---|---|---|---|---|---|
| Nominal voltage | V | 6.0 | 8.0 | 12.0 | 12.0 |
| No load speed | rpm | 7500 | 9000 | 11400 | 13000 |
| No load current | mA | 15 | 18 | 20 | 25 |
| Nominal speed | rpm | 5643 | 6772 | 8578 | 9782 |
| Nominal torque | mNm | 1.62 | 2.15 | 3.12 | 3.22 |
| Nominal current | A | 0.22 | 0.36 | 0.32 | 0.38 |
| Stall torque | mNm | 6.2 | 8.5 | 12.1 | 12.8 |
| Stall current | A | 0.82 | 1.02 | 1.25 | 1.48 |
| Terminal resistance | Ω | 7.48 | 7.82 | 9.57 | 8.13 |
| Torque constant | mNm/A | 7.48 | 8.32 | 9.85 | 8.63 |
| Speed constant | rpm/V | 1250 | 1125 | 950 | 1083 |
| Mechanical time constant | ms | 24.3 | 21 | 20.7 | 21.6 |
| Rotor inertia | gcm² | 2.12 | 2.03 | 2.29 | 2.16 |
Optical Gearbox
| N/A | |
|---|---|
Optional encoder
| N/A | |
|---|---|
Other Specifications
| Other specifications | |||
|---|---|---|---|
| Operating temperature range | -20…+80℃ | Bearing type | Ball bearings |
| Number of pole pairs | 1 | Brush type | Precious metal brushes |
| Number of phases | 5 | Weight of motor | 22.77g |
Engineering Overview
As a short-body model in the 20mm series, FA-2016R is equipped with wear-resistant ball bearings to enhance structural durability. The coreless rotor and 5-segment commutator eliminate cogging torque, realizing smooth and quiet operation. It features extra-large rotor inertia and long mechanical time constant, showing excellent speed holding capability and anti-interference ability under fluctuating loads. Two different performance versions under 12V provide more choices. It is widely applicable to medium-load miniature equipment requiring long-term stable running, and can be combined with gearboxes and encoders to achieve precise speed and position control.
Typical Applications:
• Portable precision testing instruments
• Stable-output micro transmission mechanisms
• Medium-load handheld drive tools
• Compact industrial miniature actuators
