FA-3265RC Coreless Brushed DC Motor
The FA-3265RC is our flagship 50W heavy-duty coreless brushed DC motor, with 32mm outer diameter and 65mm extended long body. It adopts thick wear-resistant graphite carbon brushes and 13-segment large commutator, matched with heavy-duty double ball bearings, realizing ultra-high overload resistance and long continuous service life. This model supplies two distinct 12V winding options plus 24V & 48V industrial high voltage versions, with industry-leading stall torque. Optional matched gearbox and encoder can be configured to build high-power closed-loop heavy-load drive systems.
• Dimension: Φ32mm × Length 65mm
• Rated Power: 50W
• Voltage Options: 12.0V (05A) / 12.0V (02A) / 24.0V / 48.0V
• Graphite carbon brush + heavy-duty ball bearings
• Optional customized planetary gearbox & multi-channel encoder

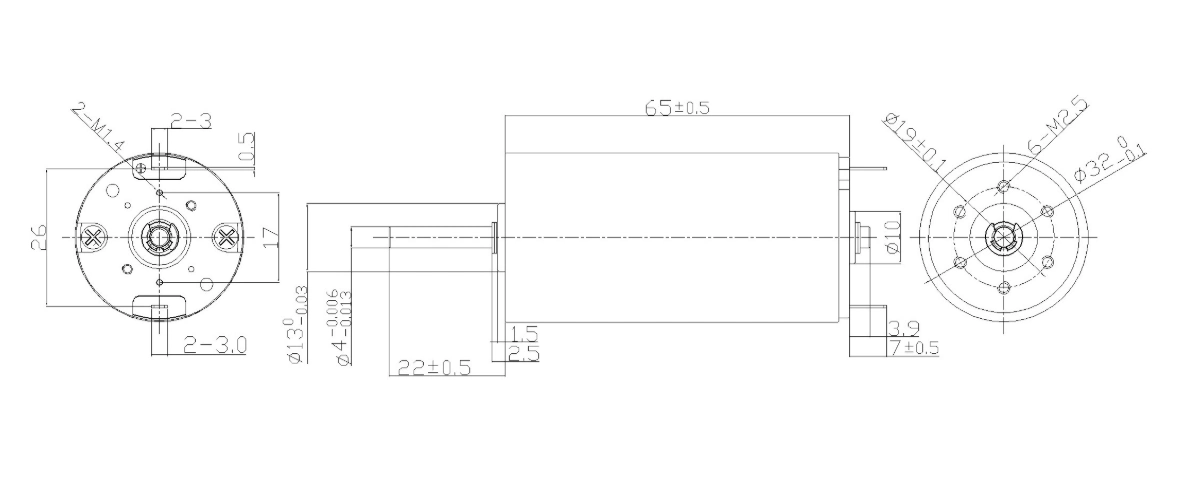

Mechanical Dimensions
Dimensions are in mm. Please refer to the datasheet for tolerances and mounting details.
Performance Parameters
| Motor specifications | 05A | 02A | 01A | 03A | |
|---|---|---|---|---|---|
| Nominal voltage | V | 12.0 | 12.0 | 24.0 | 48.0 |
| No load speed | rpm | 4400 | 5200 | 5900 | 5900 |
| No load current | mA | 65 | 120 | 80 | 30 |
| Nominal speed | rpm | 3311 | 3913 | 4439 | 4439 |
| Nominal torque | mNm | 72.98 | 100.7 | 106.83 | 107.45 |
| Nominal current | A | 2.85 | 4.66 | 2.81 | 1.4 |
| Stall torque | mNm | 294.9 | 406.9 | 431.6 | 1612 |
| Stall current | A | 11.32 | 18.46 | 11.11 | 26.37 |
| Terminal resistance | Ω | 1.06 | 0.64 | 2.16 | 8.59 |
| Torque constant | mNm/A | 25.52 | 21.6 | 38.07 | 60 |
| Speed constant | rpm/V | 366 | 433 | 245.8 | 156.25 |
| Mechanical time constant | ms | 6.9 | 6.1 | 6.5 | 6.4 |
| Rotor inertia | gcm² | 46.6 | 47.63 | 47.3 | 46.98 |
Optical Gearbox
| N/A | |
|---|---|
Optional encoder
| N/A | |
|---|---|
Other Specifications
| Other specifications | |||
|---|---|---|---|
| Operating temperature range | -20…+80℃ | Bearing type | Ball bearings |
| Number of pole pairs | 1 | Brush type | Graphite brushes |
| Number of phases | 13 | Weight of motor | 238.89g |
Engineering Overview
FA-3265RC is our flagship 50W heavy-duty coreless brushed motor designed for long-cycle industrial operation. It features thick graphite brushes and a 13-segment oversized commutator to cut brush wear and extend service life under high current and frequent stall conditions.
Its extra-long rotor delivers large rotor inertia for steady speed under variable heavy loads. Two distinct 12V winding options plus 24V and 48V grades are available; the 48V version provides outstanding 1612mNm stall torque for high starting power. Short mechanical time constant ensures fast dynamic response. Paired with gearboxes and encoders, it supports high-precision closed-loop heavy-load control.
Typical Applications:
• Humanoid robot heavy joint actuators
• Industrial heavy transmission devices
• High-pressure large-flow micro pumps
• 48V heavy-duty industrial portable machines
• Lab precision high-load equipment
Need dual 12V selection or 48V ultra-high torque customization?
FA-3265RC is a 50W flagship graphite coreless motor with dual 12V performance versions and a powerful 48V high-torque variant. Our engineering team can optimize coil winding and match gearbox & encoder to fit your extreme heavy-load continuous operation scenarios.
