FA-1332R Coreless Brushed DC Motor

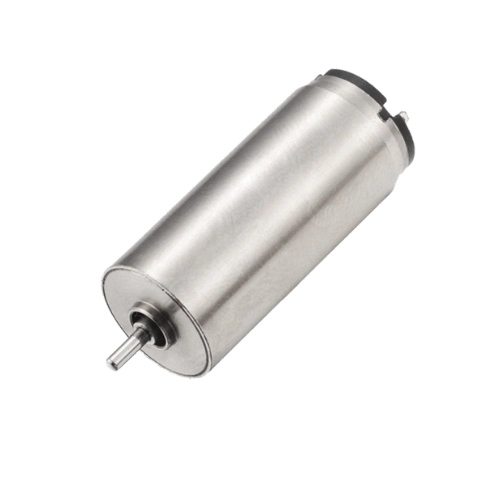

The FA-1332R is an extended 2.5W coreless brushed DC motor with Φ13mm outer diameter and 32.6mm extra-long body. It adopts iron-free coreless rotor and long-life precious metal brushes, featuring wide voltage compatibility, high torque output and ultra-fast dynamic response for complex miniature drive applications.
• Dimension: Φ13mm × Length 32.6mm
• Rated Power: 2.5W
• Voltage Options:3.5V / 5.0V / 12.0V / 24.0V
• Precious metal brush & oil-impregnated sleeve bearing
• Optional G13MF & G13XL gearbox plus matched encoder

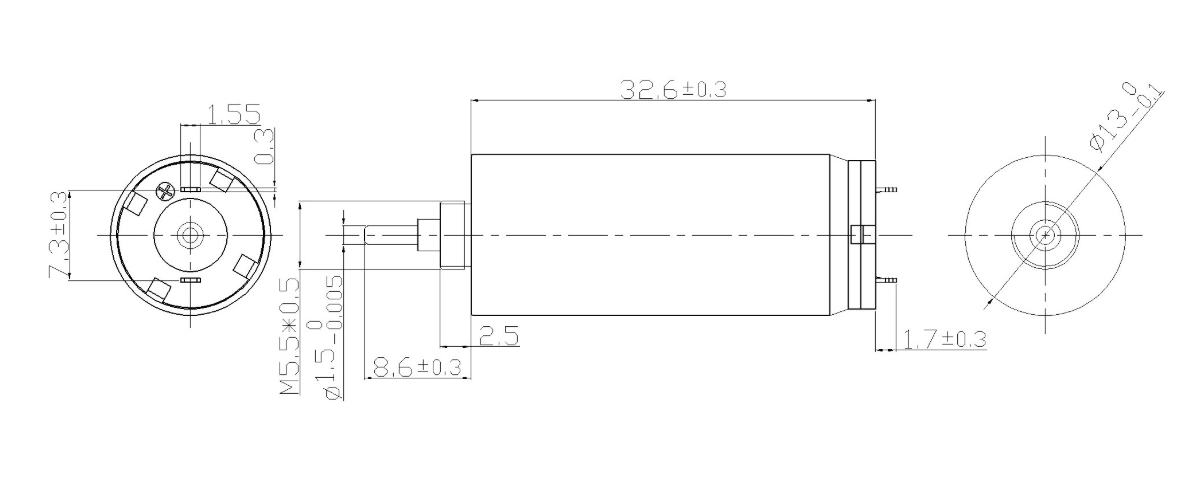

Mechanical Dimensions
Dimensions are in mm. Please refer to the datasheet for tolerances and mounting details.
Performance Parameters
| Motor specifications | 27A | 24A | 82A | 75A | |
|---|---|---|---|---|---|
| Nominal voltage | V | 3.5 | 5.0 | 12.0 | 24.0 |
| No load speed | rpm | 10400 | 10000 | 8670 | 13200 |
| No load current | mA | 45 | 30 | 15 | 15 |
| Nominal speed | rpm | 7826 | 7525 | 6524 | 9933 |
| Nominal torque | mNm | 2.32 | 3.11 | 2.86 | 4.54 |
| Nominal current | A | 0.76 | 0.67 | 0.23 | 0.27 |
| Stall torque | mNm | 9.2 | 12.6 | 11.6 | 18.3 |
| Stall current | A | 2.92 | 2.63 | 0.87 | 1.06 |
| Terminal resistance | Ω | 1.2 | 1.9 | 13.73 | 22.72 |
| Torque constant | mNm/A | 3.15 | 4.68 | 12.95 | 17 |
| Speed constant | rpm/V | 2971 | 2000 | 722 | 550 |
| Mechanical time constant | ms | 6.6 | 4.7 | 4.4 | 4.2 |
| Rotor inertia | gcm² | 0.593 | 0.588 | 0.589 | 0.586 |
Optical Gearbox
| Optional gearbox | |
|---|---|
| G12MF | |
| G12XL |
Optional encoder
| N/A | |
|---|---|
Other Specifications
| Other specifications | |||
|---|---|---|---|
| Operating temperature range | -20…+80℃ | Bearing type | Sleeve bearings |
| Number of pole pairs | 1 | Brush type | Precious metal brushes |
| Number of phases | 5 | Weight of motor | 21.43g |
Engineering Overview
As an extended-length model of the 13mm series, FA-1332R features an elongated coreless rotor structure, delivering stronger continuous torque and excellent stability under variable loads. Equipped with 5-segment commutator and premium precious metal brushes, it eliminates cogging torque to realize low-noise and low-vibration operation. This motor supports an ultra-wide voltage range covering low voltage to 24V high voltage, with an extremely short mechanical time constant for ultra-fast start-stop response. Matched G13MF and G13XL gearboxes and encoders are available to meet high-precision closed-loop control demands for long-term running equipment.
Typical Applications:
• 24V industrial miniature precision actuators
• High-torque long-running handheld medical devices
• Wide-voltage adaptive micro fluid transfer pumps
• Professional high-load cosmetic drive equipment
