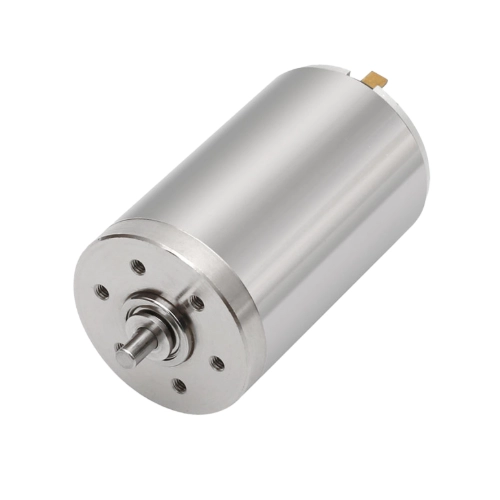

FA-2643RC Coreless Brushed DC Motor
The FA-2643RC is a flagship 25W ultra-high torque coreless brushed DC motor with Φ26mm outer diameter and 43mm extended body. It adopts long-life graphite carbon brushes, 11-segment commutator and heavy-duty ball bearings, realizing outstanding overload resistance and extended continuous service life. It covers a wide voltage spectrum from low 4.5V up to industrial 29V high voltage, and perfectly matches G22MF planetary gearbox and EM22 series incremental & absolute encoders to build heavy-load closed-loop drive systems.
• Dimension: Φ26mm × Length 43mm
• Rated Power: 25W
• Voltage Options: 4.5V / 12.0V / 24.0V / 29.0V
• Graphite carbon brush + heavy-duty ball bearings
• Optional G22MF gearbox & multi-channel EM22 encoder

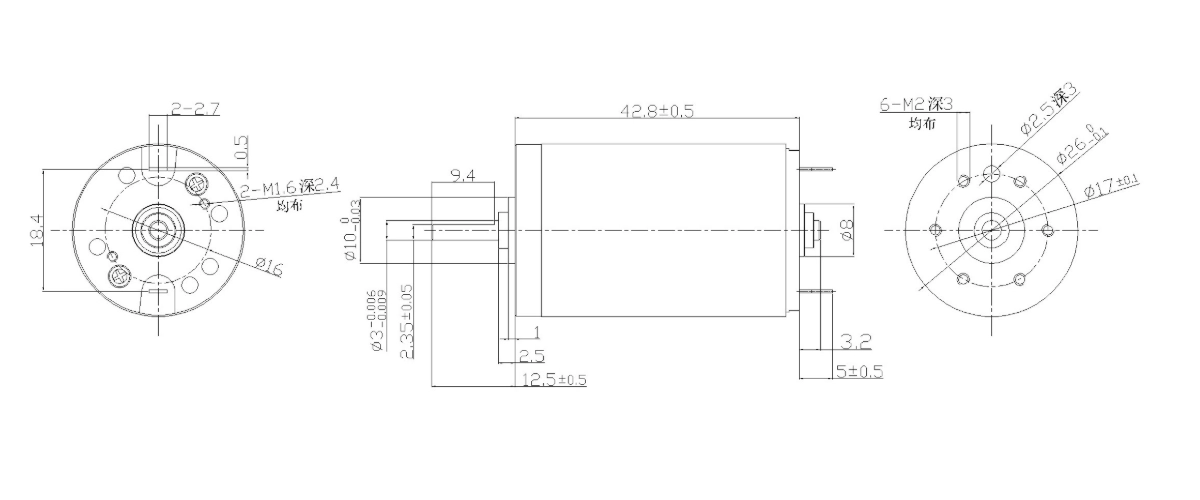

Mechanical Dimensions
Dimensions are in mm. Please refer to the datasheet for tolerances and mounting details.
Performance Parameters
| Motor specifications | 10A | 20A | 22A | 29A | |
|---|---|---|---|---|---|
| Nominal voltage | V | 4.5 | 12.0 | 24.0 | 29.0 |
| No load speed | rpm | 5100 | 5200 | 7000 | 4600 |
| No load current | mA | 145 | 50 | 35 | 20 |
| Nominal speed | rpm | 3825 | 3900 | 5250 | 3450 |
| Nominal torque | mNm | 59.25 | 39.35 | 51.03 | 33.94 |
| Nominal current | A | 7.14 | 1.82 | 1.58 | 0.58 |
| Stall torque | mNm | 237 | 157 | 204 | 135 |
| Stall current | A | 28.13 | 7.14 | 6.23 | 2.26 |
| Terminal resistance | Ω | 0.16 | 1.68 | 3.85 | 12.86 |
| Torque constant | mNm/A | 8.25 | 21.6 | 32.1 | 59 |
| Speed constant | rpm/V | 1133 | 433 | 291 | 158 |
| Mechanical time constant | ms | 3.7 | 5.5 | 5.9 | 5.9 |
| Rotor inertia | gcm² | 17.04 | 16.76 | 17.2 | 17.35 |
Optical Gearbox
| Optional gearbox | |
|---|---|
| G22MF |
Optional encoder
| Optional encoder | |
|---|---|
| EM22 | 增量式(Incremental) 1~1024ppr 1~3通道(channel) |
| EM22 | 绝对式(Absolute) 14 bit single turn |
Other Specifications
| Other specifications | |||
|---|---|---|---|
| Operating temperature range | -20…+80℃ | Bearing type | Ball bearings |
| Number of pole pairs | 1 | Brush type | Graphite brushes |
| Number of phases | 11 | Weight of motor | 104.2g |
Engineering Overview
FA-2643RC is the top-tier 25W high-power model of our coreless motor lineup, specially optimized for long-cycle heavy-load industrial operation. Different from standard precious metal brush motors, it adopts thick graphite carbon brushes and 11-piece large-size commutator, which greatly reduces brush wear under high current and frequent stall conditions, extending the whole machine service life significantly.
The extended 43mm rotor brings ultra-large rotor inertia and industry-leading stall torque, delivering powerful instantaneous output to cope with heavy startup loads. It provides four unique winding options covering low-voltage 4.5V portable equipment to special industrial 29V power supply systems, fully covering diversified power demand scenarios. All versions feature ultra-short mechanical time constant, enabling fast dynamic response and sensitive speed adjustment. Matched with G22MF gearbox and multi-channel EM22 encoder, it can realize high-precision heavy-load positioning and speed regulation, widely adopted in high-power industrial automation equipment.
Typical Applications:
• Heavy-duty industrial miniature servo actuators
• High-pressure large-flow industrial micro pumps
• Automated assembly heavy-load transmission units
• 29V special industrial portable drive equipment
• High-power precision laboratory drive machinery
