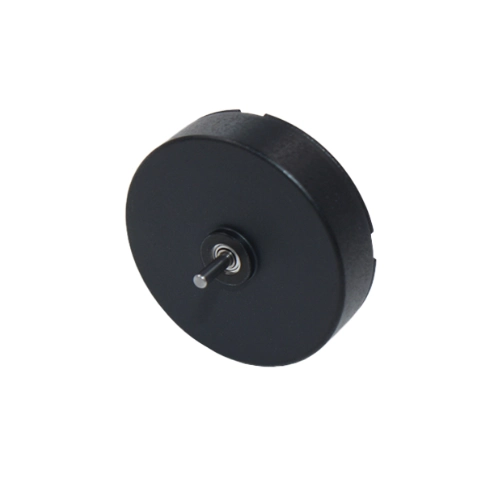

FA-2607R Coreless Brushed DC Motor
The FA-2607R is an ultra-compact 3W coreless brushed DC motor with Φ26mm outer diameter and ultra-short 7mm body. It adopts high-performance ball bearings and premium precious metal brushes, and features 2 pole pairs and 6 commutator segments for optimized structural design. With extremely short mechanical time constant and tiny rotor inertia, this motor delivers ultra-fast dynamic response. It offers four voltage specifications including two 12V tuning versions, and supports customized gearboxes and encoders to meet diverse miniaturized drive requirements.
• Dimension: Φ26mm × Length 7mm
• Rated Power: 3W
• Voltage Options: 6.0V / 9.0V / 12.0V / 12.0V
• Precious metal brush & high-precision ball bearings
• Optional customized gearbox and matched encoder
Mechanical Dimensions

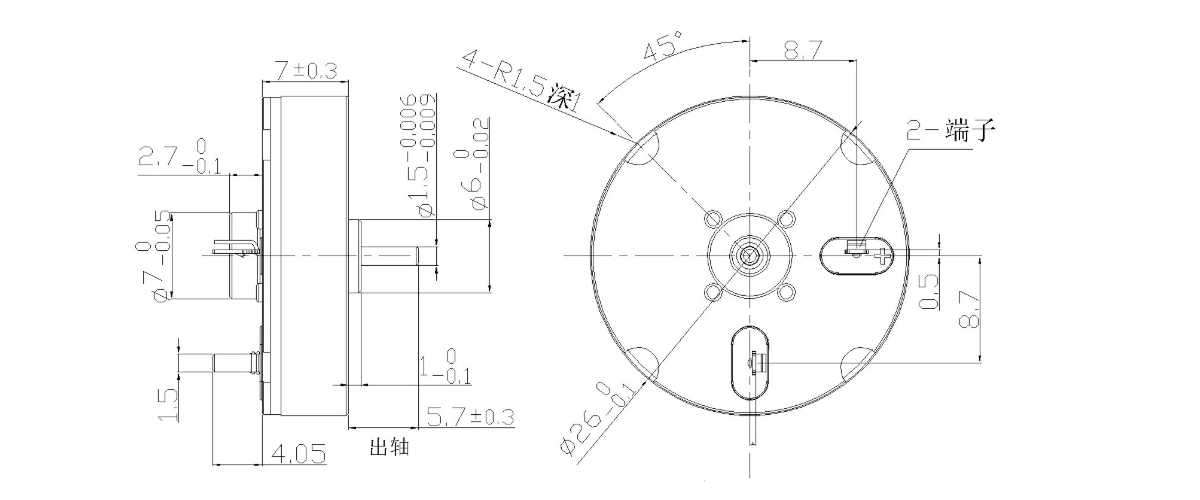

Dimensions are in mm. Please refer to the datasheet for tolerances and mounting details.
Performance Parameters
| Motor specifications | 03A | 04A | 08A | 01A | |
|---|---|---|---|---|---|
| Nominal voltage | V | 6.0 | 9.0 | 12.0 | 12.0 |
| No load speed | rpm | 7300 | 10900 | 6050 | 10650 |
| No load current | mA | 15 | 20 | 6 | 20 |
| Nominal speed | rpm | 5475 | 8175 | 4537 | 7987 |
| Nominal torque | mNm | 1.8 | 2.71 | 1.74 | 2.70 |
| Nominal current | A | 0.24 | 0.36 | 0.1 | 0.27 |
| Stall torque | mNm | 7.0 | 10.6 | 39.3 | 10.8 |
| Stall current | A | 0.92 | 1.38 | 7.95 | 1 |
| Terminal resistance | Ω | 6.54 | 6.54 | 32.74 | 11.96 |
| Torque constant | mNm/A | 7.69 | 7.73 | 4.84 | 10.55 |
| Speed constant | rpm/V | 1216 | 1211 | 1933 | 887 |
| Mechanical time constant | ms | 1.6 | 1.6 | 1.7 | 1.5 |
| Rotor inertia | gcm² | 0.156 | 0.156 | 0.19 | 0.15 |
Optical Gearbox
| N/A | |
|---|---|
Optional encoder
| N/A | |
|---|---|
Other Specifications
| Other specifications | |||
|---|---|---|---|
| Operating temperature range | -20…+80℃ | Bearing type | Ball bearings |
| Number of pole pairs | 1 | Brush type | Precious metal brushes |
| Number of phases | 6 | Weight of motor | 20.12g |
Engineering Overview
FA-2607R is a distinctive ultra-short body model in the 26mm series, adopting a special design with 2 pole pairs and 6 commutator segments, which is different from conventional motors. Equipped with wear-resistant ball bearings, it delivers excellent rotational precision and long service life. Thanks to the ultra-small rotor inertia and industry-leading low mechanical time constant across all versions, the motor achieves instant start and stop with extremely sensitive response. It provides four voltage options, including two independent 12V versions with totally different speed and torque characteristics for flexible selection. The 12V/08A version features prominent stall torque for heavy-load instantaneous startup. The coreless rotor structure effectively eliminates cogging torque, ensuring smooth and low-noise operation. Its ultra-compact size and lightweight design make it ideal for highly integrated miniature precision equipment.
Typical Applications:
• Miniature high-speed precision testing instruments
• Compact wearable intelligent drive components
• Micro servo control units for small robots
• Portable precision medical and beauty tools
