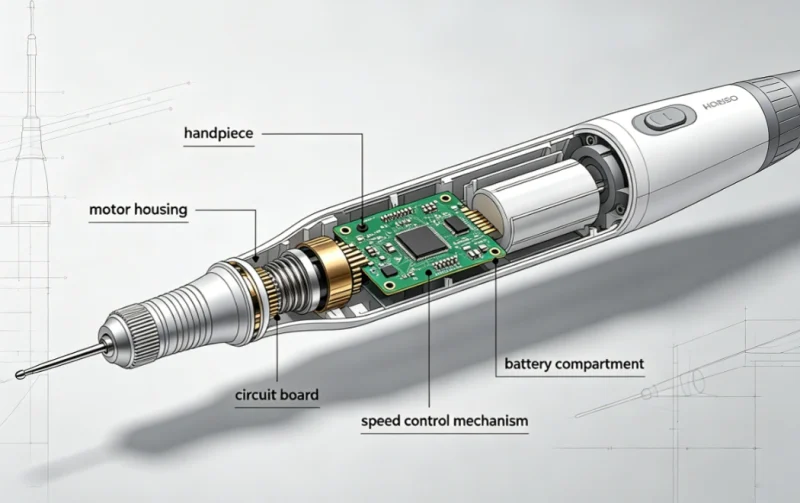

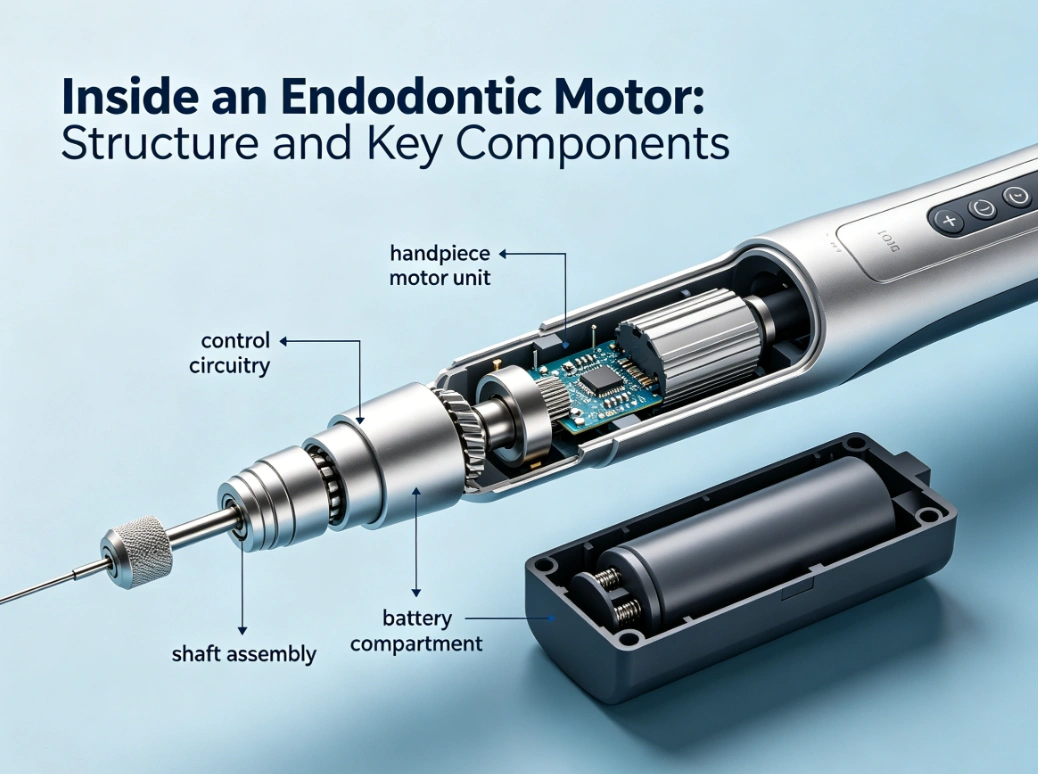

Inside an Endodontic Motor: Structure and Key Components

1. Motor Core (Stator and Rotor)

• Stator: Composed of copper windings and magnetic cores, it generates a rotating magnetic field to drive the rotor. For compact endodontic motors, the stator is designed to be small (diameter ≤ 18mm) while maintaining sufficient power output.
• Rotor: Equipped with permanent magnets, it rotates in response to the stator’s magnetic field. The rotor’s design directly impacts torque stability—optimal rotor balancing reduces vibration, critical for clinical precision.

2. Encoder (Position and Speed Feedback)

• Type: Optical encoders are preferred for endodontic motors due to their high precision (up to 1000 pulses per revolution) and resistance to moisture/heat from sterilization.
• Role: It detects the rotor’s position and speed, sending signals to the driver to adjust current and voltage—ensuring stable speed under variable loads (e.g., when the instrument encounters dense dentin).

3. Driver (Motor Control Unit)

• Function: Adjusts the motor’s speed and torque based on clinical requirements (e.g., lower speed for root canal shaping, higher speed for access opening) and encoder feedback.
• Integration Note: The driver must be compact to fit within the endodontic handpiece or control unit, while supporting torque limiting—a safety feature to prevent instrument breakage.

4. Gearbox (Torque and Speed Optimization)

• Gear Ratio: Typically ranges from 10:1 to 30:1—higher ratios for torque-intensive tasks (e.g., shaping curved canals) and lower ratios for high-speed tasks (e.g., access opening).
• Design Considerations: The gearbox must be small, lightweight, and resistant to sterilization—poorly designed gearboxes cause vibration, noise, and premature failure.

5. Sealing and Housing

• Sealing: Hermetic seals (e.g., O-rings, laser welding) prevent moisture from entering the motor core, encoder, and driver—avoiding short circuits and component damage.
• Housing Material: Medical-grade stainless steel or high-temperature plastic, designed to withstand repeated sterilization cycles without warping or degradation.

• Space Constraints: Solution: Opt for miniaturized components (e.g., compact BLDC motor cores, slim encoders) and custom integration designs. FingerAct offers custom motor cores and gearboxes tailored to tight handpiece dimensions, ensuring performance without sacrificing space.
• Component Compatibility: Solution: Ensure the encoder, driver, and gearbox are matched to the motor core’s specifications. Mismatched components lead to inconsistent performance, vibration, and torque fluctuations.
• Sterilization Damage: Solution: Select components rated for high-temperature sterilization and integrate hermetic sealing. Avoid brushed motors, which are prone to damage from brush dust and moisture during autoclaving.

• ☑️ Choose a BLDC motor core for stability, long lifespan, and sterilization compatibility.
• ☑️ Select a high-precision optical encoder (≥500 pulses per revolution) for precise speed/position control.
• ☑️ Match the driver to the motor core’s voltage and current requirements, with torque limiting features.
• ☑️ Opt for a compact gearbox with a gear ratio aligned to clinical tasks (10:1–30:1).
• ☑️ Ensure hermetic sealing and medical-grade housing for sterilization compatibility.

• Overlooking Component Compatibility: Selecting a motor core, encoder, and driver from different suppliers without verifying compatibility leads to integration failures and inconsistent performance.
• Prioritizing Size Over Performance: Sacrificing motor core power or encoder precision to reduce size results in poor clinical performance (e.g., speed fluctuations, instrument breakage).
• Ignoring Sterilization Requirements: Choosing components that cannot withstand autoclave sterilization leads to premature failure and increased maintenance costs.
