FA-2330RD Two-Pole Coreless Brushless DC Motor
FA-2330RD is a high-performance 25W two-pole coreless brushless DC motor with Φ23 outer diameter and 30mm long body. Equipped with precision double ball bearings for heavy load and long service life, two-pole slotless rotor delivers ultra-fast dynamic response and zero cogging torque. Built-in 3-channel hall sensor supports stable closed-loop speed regulation. Four winding options cover 7.4V lithium, 12V, 24V, 30V industrial voltages. Matched G22MF planetary gearbox and EM22 incremental/absolute encoders are available for medium-load precision equipment.
• Dimension: Φ23mm × Length 30mm
• Rated Power: 25W
• Voltage Options: 7.4V(04A) / 12V(01A) / 24V(03A) / 30V(05A)
• Two-pole structure + Double ball bearings + 3CH hall sensor
• Split dual harness (XHP-3 power + MOLEX signal); Optional G22MF gearbox & EM22 encoders

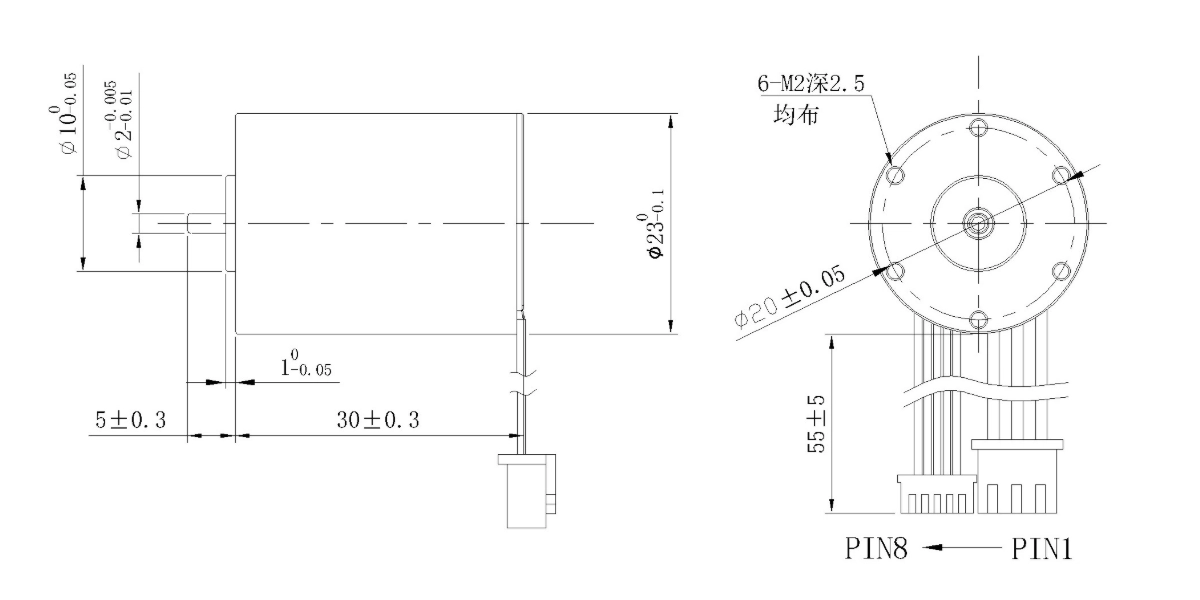

Mechanical Dimensions
Dimensions are in mm. Please refer to the datasheet for tolerances and mounting details.
Performance Parameters
| Motor specifications | 04A | 01A | 03A | 05A | |
|---|---|---|---|---|---|
| Nominal voltage | V | 7.4 | 12 | 24 | 30 |
| No load speed | rpm | 10000 | 14000 | 16000 | 16000 |
| No load current | mA | 110 | 100 | 100 | 100 |
| Nominal speed | rpm | 10000 | 12600 | 14400 | 14400 |
| Nominal torque | mNm | 10.46 | 8.47 | 16.85 | 16.43 |
| Nominal current | A | 1.58 | 1.12 | 1.27 | 1.01 |
| Stall torque | mNm | 104.6 | 84.7 | 168.5 | 164.3 |
| Stall current | A | 14.8 | 10.34 | 11.76 | 9.17 |
| Terminal resistance | Ω | 0.5 | 1.16 | 2.04 | 3.27 |
| Torque constant | mNm/A | 7 | 8.18 | 14.32 | 17.9 |
| Speed constant | rpm/V | 1351 | 1166.7 | 666.7 | 533.3 |
| Mechanical time constant | ms | 3.81 | 6.58 | 3.78 | 3.88 |
| Rotor inertia | gcm² | 3.98 | 3.98 | 3.98 | 3.98 |
Optical Gearbox
| Optional gearbox | |
|---|---|
| G22MF | |
Optional encoder
| Optional encoder | |
|---|---|
| EM22 | 增量式(Incremental) 1~1024ppr 1~3通道(channel) |
| EM22 | 绝对式(Absolute) 14 bit single turn |
Terminal data
| Terminal data | |||
|---|---|---|---|
| Teminal model :Pin 1 ~ Pin 3 | AWG24 JST XHP-3 XH2.5 | Pin 4 ~ Pin 8 | AWG26 MOLEX SD-51021-006 1.25间距 |
| Pin 1 电机绕组Motor winding 1 Red | Pin 2 电机绕组Motor winding 2 Yellow | Pin 3 电机绕组Motor winding 3 Black | Pin 4 霍尔传感器Hall GND Black |
| Pin 5 霍尔传感器Hall VCC DC 3.3~5V Black | Pin 6 霍尔传感器Hall sensor 1 Black | Pin 7 霍尔传感器Hall sensor 2 Black | Pin 8 霍尔传感器Hall sensor 3 Black |
Other Specifications
| Other specifications | |||
|---|---|---|---|
| Operating temperature range | -20…+80℃ | Bearing type | Ball bearings |
| Number of pole pairs | 2 | Weight of motor | 63g |
| Number of phases | 3 |
Engineering Overview
FA-2330RD two-pole coreless BLDC adopts ball bearing structure, greatly improving load capacity and service life compared to sleeve bearing micro motors. Two-pole low-inertia rotor brings fast start-stop and smooth low-variable rotation without cogging torque. Split power & signal wiring effectively avoids electromagnetic interference. Wide voltage range covers lithium handheld devices and 12/24/30V miniature automation systems. Matched G22MF gearbox amplifies torque for medium-load polishing, grinding and precision adjustment equipment.
Typical Applications:
• High-power nail drills, jade miniature carving handheld tools
• Portable medical beauty instruments, facial deep cleaning equipment
• Miniature industrial deburring & surface polishing devices
• Small automated optical focusing and testing modules
