FA-4088RB Coreless Brushless DC Motor
FA-4088RB is a flagship 150W super high-torque coreless brushless DC motor with 40mm outer diameter and 88mm ultra-long body. Equipped with heavy-duty double ball bearings and built-in 3-channel hall sensor, it delivers extreme stall torque for long-hour heavy continuous loads. It adopts industrial pluggable EX2EDG-5.08 8Pin Phoenix terminal with 16AWG thick silicone wires for stable high-current transmission. Four winding variants cover 32V, 36V and 48V high industrial voltages. EM22 incremental & absolute encoders are optional for high-precision closed-loop servo systems.
• Dimension: Φ40mm × Length 88mm
• Rated Power: 150W
• Voltage Options: 32V(03A) / 36V(04A) / 48V(02A/01A)
• Heavy-duty double ball bearings + integrated 3CH hall sensor (3.3~5V VCC)
• EX2EDG-5.08 pluggable 8Pin industrial Phoenix terminal, 16AWG silicone wire; Optional EM22

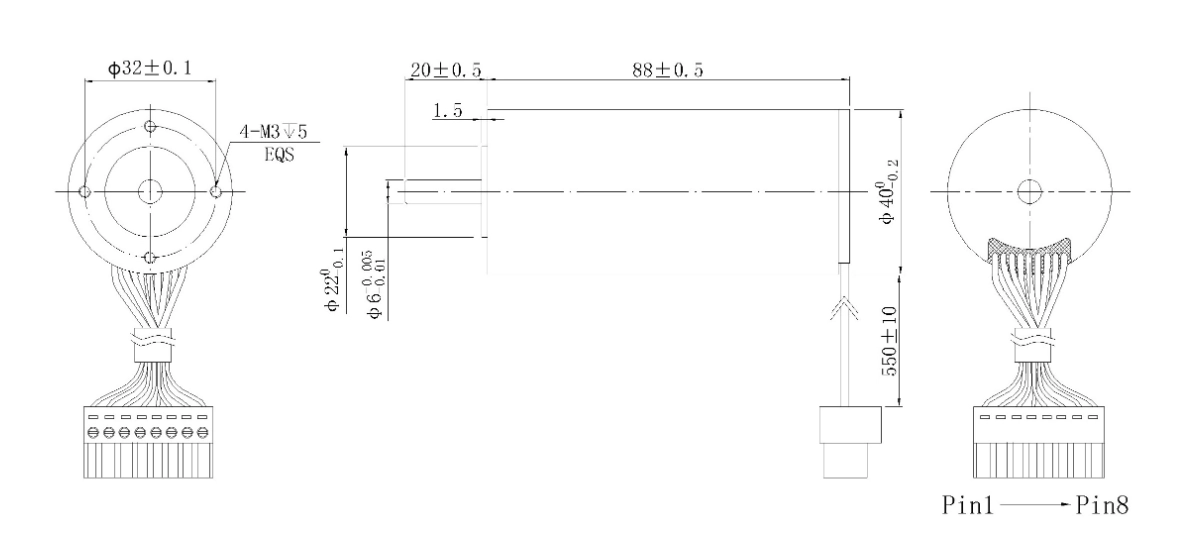

Mechanical Dimensions
Dimensions are in mm. Please refer to the datasheet for tolerances and mounting details.
Performance Parameters
| Motor specifications | 03A | 04A | 02A | 01A | |
|---|---|---|---|---|---|
| Nominal voltage | V | 32 | 36 | 48 | 48 |
| No load speed | rpm | 10500 | 8000 | 10300 | 12000 |
| No load current | mA | 750 | 300 | 290 | 500 |
| Nominal speed | rpm | 9600 | 7300 | 9400 | 11000 |
| Nominal torque | mNm | 219.14 | 179.37 | 237.36 | 271.64 |
| Nominal current | A | 8.22 | 4.45 | 5.6 | 7.53 |
| Stall torque | mNm | 2739.3 | 2242.2 | 2967 | 3395.6 |
| Stall current | A | 94.12 | 52.17 | 66.67 | 88.89 |
| Terminal resistance | Ω | 0.34 | 0.69 | 0.72 | 0.54 |
| Torque constant | mNm/A | 28.52 | 42.11 | 43.61 | 37.43 |
| Speed constant | rpm/V | 328 | 222 | 214 | 250 |
| Mechanical time constant | ms | 3.06 | 2.85 | 2.77 | 2.82 |
| Rotor inertia | gcm² | 79.84 | 79.84 | 79.84 | 79.84 |
Optical Gearbox
| N/A | |
|---|---|
Optional encoder
| Optional encoder | |
|---|---|
| EM22 | 增量式(Incremental) 1~16384ppr 1~3通道(channel) |
| EM22 | 绝对式(Absolute) 21 bit single turn |
Terminal data
| Terminal data | ||
|---|---|---|
| Teminal model :拔插式凤凰接线端子EX2EDG-5.08 | 8Pin 硅胶线16AWG | |
| Pin 1 电机绕组Motor winding 1 | Pin 2 电机绕组 Motor winding 2 | Pin 3 电机绕组Motor winding 3 |
| Pin 4 霍尔传感器Hall GND | Pin 5 霍尔传感器 Hall sensor 1 | Pin 6 霍尔传感器 Hall sensor 2 |
| Pin 7 霍尔传感器 Hall sensor 3 | Pin 8 霍尔传感器 Hall Vcc 3.3~5V |
Other Specifications
| Other specifications | |||
|---|---|---|---|
| Operating temperature range | -20…+80℃ | Bearing type | Ball bearings |
| Number of pole pairs | 1 | Weight of motor | 457g |
| Number of phases | 3 |
Engineering Overview
FA-4088RB coreless BLDC eliminates cogging torque and brush wear for ultra-smooth heavy-duty operation. Oversized rotor delivers extreme stall torque to handle ultra-hard cutting loads. Industrial pluggable Phoenix terminal supports high-current transmission, easy disassembly for maintenance. Reinforced ball bearings resist severe vibration and impact. It matches 32/36/48V industrial power supplies; EM22 encoders enable high-precision closed-loop position control.
Typical Applications:
• Heavy stone/metal industrial carving & cutting power equipment
• Large-load industrial robot main drive joints
• High-power professional industrial polishing machines
• Heavy-duty automated industrial transmission modules
