FA-2866RB (Tool) Coreless Brushless DC Motor
FA-2866RB (Tool) is a flagship 65W ultra-high torque coreless brushless DC motor exclusively optimized for heavy-duty cordless handheld power tools, sized Φ28mm outer diameter × 66mm ultra-long extended body. It adopts reinforced shock-resistant double ball bearings to withstand long-hour heavy cutting, frequent impact and dusty working conditions. Built-in 3-channel hall sensor delivers consistent stable rotation speed under sharp load fluctuations during material carving & grinding. Four winding variants cover mainstream 30V, 37V and 48V lithium battery power systems, with industry-leading stall torque output. Optional G28MT planetary gearbox and EM22 series encoders support low-speed high-torque precision polishing work.
• Dimension: Φ28mm × Length 66mm
• Rated Power: 65W
• Voltage Options: 30V(02XA/05A) / 37V(01XA) / 48V(02A)
• Reinforced anti-shock double ball bearings + integrated 3CH hall sensor
• 8Pin-26# black silicone wire, JST PH2.0 connector; Optional G28MT gearbox & EM22 encoders

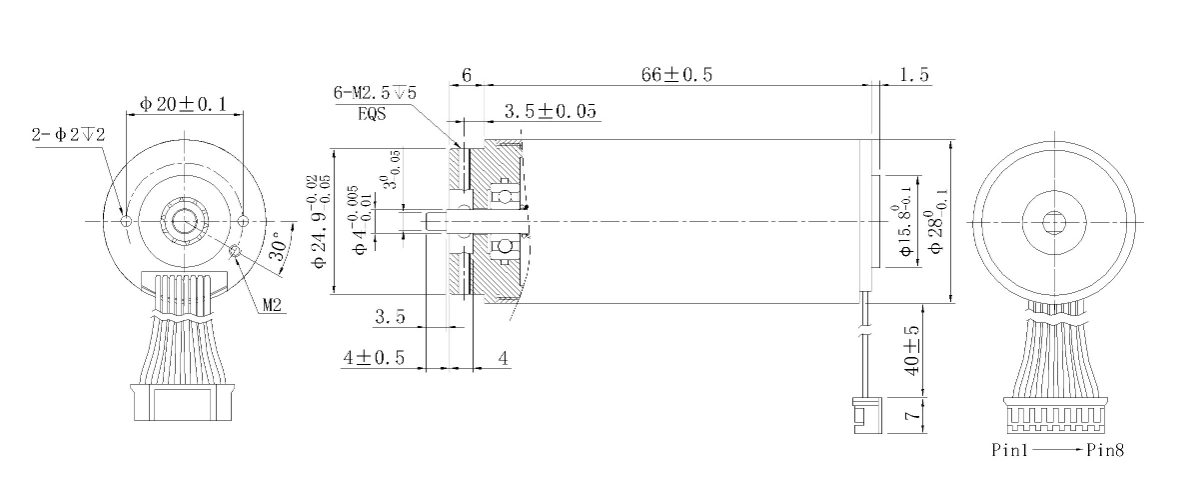

Mechanical Dimensions
Dimensions are in mm. Please refer to the datasheet for tolerances and mounting details.
Performance Parameters
| Motor specifications | 01XA | 02XA | 02A | 05A | |
|---|---|---|---|---|---|
| Nominal voltage | V | 30 | 30 | 37 | 48 |
| No load speed | rpm | 16500 | 15500 | 20000 | 21000 |
| No load current | mA | 180 | 160 | 200 | 200 |
| Nominal speed | rpm | 14900 | 14000 | 18000 | 19000 |
| Nominal torque | mNm | 69.7 | 86.36 | 83.92 | 85.81 |
| Nominal current | A | 4.18 | 4.82 | 4.93 | 4.11 |
| Stall torque | mNm | 733.7 | 909 | 883.4 | 903.3 |
| Stall current | A | 42.25 | 49.18 | 50 | 41.38 |
| Terminal resistance | Ω | 0.71 | 0.61 | 0.74 | 1.16 |
| Torque constant | mNm/A | 17.01 | 18.11 | 17.31 | 21.39 |
| Speed constant | rpm/V | 550 | 516 | 540 | 437 |
| Mechanical time constant | ms | 2.29 | 1.74 | 2.31 | 2.37 |
| Rotor inertia | gcm² | 10.2 | 7.58 | 7.58 | 7.58 |
Optical Gearbox
| Optional gearbox | |
|---|---|
| G28MT | |
Optional encoder
| Optional encoder | |
|---|---|
| EM22 | 增量式(Incremental) 1~16384ppr 1~3通道(channel) |
| EM22 | 绝对式(Absolute) 21 bit single turn |
Terminal data
| Terminal data | ||
|---|---|---|
| Terminal model：8Pin-26# | 3302 引线黑色+JST端子 PH2.0 | |
| Pin 1 电机绕组Motor winding 3 黑色Black | Pin 2 电机绕组Motor winding 1 黑色Black | Pin 3 电机绕组Motor winding 2 黑色Black |
| Pin 4 霍尔传感器Hall GND 黑色Black | Pin 5 霍尔传感器Hall sensor 1 黑色Black | Pin 6 霍尔传感器Hall sensor 2 黑色Black |
| Pin 7 霍尔传感器Hall sensor 3 黑色Black | Pin 8 霍尔传感器Hall Vcc 3.3~5V黑色Black |
Other Specifications
| Other specifications | |||
|---|---|---|---|
| Operating temperature range | -20…+80℃ | Bearing type | Ball bearings |
| Number of pole pairs | 1 | Weight of motor | 195.7g |
| Number of phases | 3 |
Engineering Overview
FA-2866RB (Tool) coreless BLDC eliminates cogging torque and brush abrasion for ultra-smooth low-vibration heavy cutting. Reinforced bearings resist impact, dust and long continuous operation. Ultra-large rotor inertia delivers top-tier stall torque for hard metal, jade and wood carving. It supports wide lithium voltage range from 30V to 48V to match high-power cordless tools; built-in hall sensor stabilizes speed under heavy cutting resistance. Matched G28MT gearbox realizes low-speed high-torque delicate polishing output.
Typical Applications:
• Heavy-duty metal/jade/wood engraving & cutting power tools
• Industrial handheld deburring & surface grinding machines
• High-power manicure & dental lab polishing equipment
