FA-2453RB Coreless Brushless DC Motor
The FA-2453RB is an ultra-long 45W high-power coreless brushless DC motor with 24mm outer diameter and 53mm extended body length. It adopts reinforced heavy-duty ball bearings and built-in 3-channel hall sensor to deliver stable closed-loop speed feedback under continuous heavy cutting loads. This model provides four winding variants including one 24V and three 30V industrial high-voltage versions, covering low-speed high-torque and ultra-high-speed performance curves for handheld power tools. Custom planetary gearbox and incremental/absolute encoder are optional to build high-power miniature drive systems.
• Dimension: Φ24mm × Length 53mm
• Max Transmission Power: 45W
• Voltage Options: 24V(02A) / 30V(03A/04A/01A)
• Reinforced heavy-duty ball bearings + integrated 3-phase hall sensor
• Multi-color split power & signal wire layout; Optional planetary gearbox & encoder

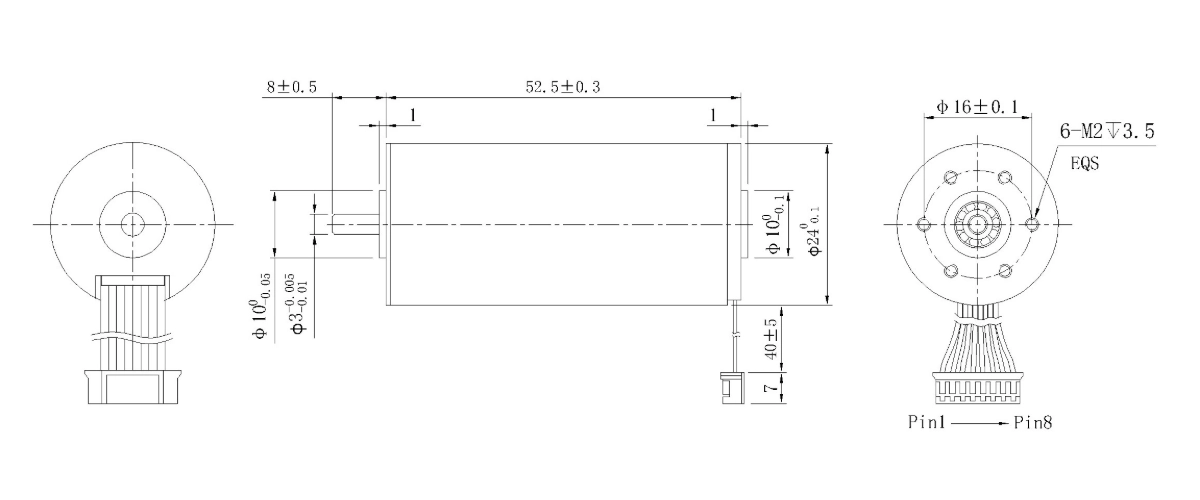

Mechanical Dimensions
Dimensions are in mm. Please refer to the datasheet for tolerances and mounting details.
Performance Parameters
| Motor specifications | 02A | 03A | 04A | 01A | |
|---|---|---|---|---|---|
| Nominal voltage | V | 24 | 30 | 30 | 30 |
| No load speed | rpm | 12500 | 16500 | 20000 | 21500 |
| No load current | mA | 150 | 160 | 200 | 230 |
| Nominal speed | rpm | 11300 | 14900 | 18100 | 19400 |
| Nominal torque | mNm | 27.32 | 36.39 | 43.6 | 45.76 |
| Nominal current | A | 1.63 | 2.24 | 3.25 | 3.64 |
| Stall torque | mNm | 287.6 | 383 | 462.1 | 481.6 |
| Stall current | A | 15.69 | 22.06 | 32.36 | 36.14 |
| Terminal resistance | Ω | 1.53 | 1.36 | 0.93 | 0.83 |
| Torque constant | mNm/A | 21.39 | 17.01 | 14.03 | 13.06 |
| Speed constant | rpm/V | 437 | 550 | 666 | 716 |
| Mechanical time constant | ms | 2.5 | 2.48 | 2.49 | 2.57 |
| Rotor inertia | gcm² | 5.75 | 5.75 | 5.75 | 5.75 |
Optical Gearbox
| N/A | |
|---|---|
Optional encoder
| N/A | |
|---|---|
Terminal data
| Terminal data | |
|---|---|
| Teminal model : |
Other Specifications
| Other specifications | |||
|---|---|---|---|
| Operating temperature range | -20…+80℃ | Bearing type | Ball bearings |
| Number of pole pairs | 1 | Weight of motor | |
| Number of phases | 3 |
Engineering Overview
FA-2453RB high-power coreless BLDC eliminates cogging torque and brush friction for smooth low-vibration operation and long service life. Reinforced ball bearings resist shock and dust from cutting work. Large rotor inertia delivers massive stall torque for heavy loads. It supports 24V/30V lithium power systems, built-in hall sensors maintain stable speed under load fluctuations. Optional gearbox realizes low-speed high-torque polishing output.
Typical Applications:
• Cordless metal, jade and wood engraving carving tools
• Handheld dental polishing & manicure grinding equipment
• Mini industrial surface deburring power tools
• Medium-heavy load miniature robotic joint actuators
