FA-2438RB (Tool) Coreless Brushless DC Motor
The FA-2438RB (Tool) is a dedicated 20W coreless brushless DC motor developed for handheld power tools, featuring 24mm outer diameter and 38mm extended body length. It adopts reinforced heavy-duty precision ball bearings to withstand frequent impact and high-speed cyclic operation of grinding, polishing and carving tools. Equipped with built-in 3-channel hall sensor for stable closed-loop speed regulation under fluctuating cutting loads. This model provides four high industrial voltage winding variants covering 24V, dual 30V and 32V power supplies, with matched high-speed and high-torque performance curves to meet diverse power tool requirements. Custom planetary gearbox and encoder are optional for low-speed high-torque tool applications.
• Dimension: Φ24mm × Length 38mm
• Max Transmission Power: 20W
• Voltage Options: 24V(05A) / 30V(01A/03A) / 32V(04A)
• Reinforced heavy-duty ball bearings + integrated 3-phase hall sensor
• Multi-color split power & signal wire layout; Optional planetary gearbox & encoder

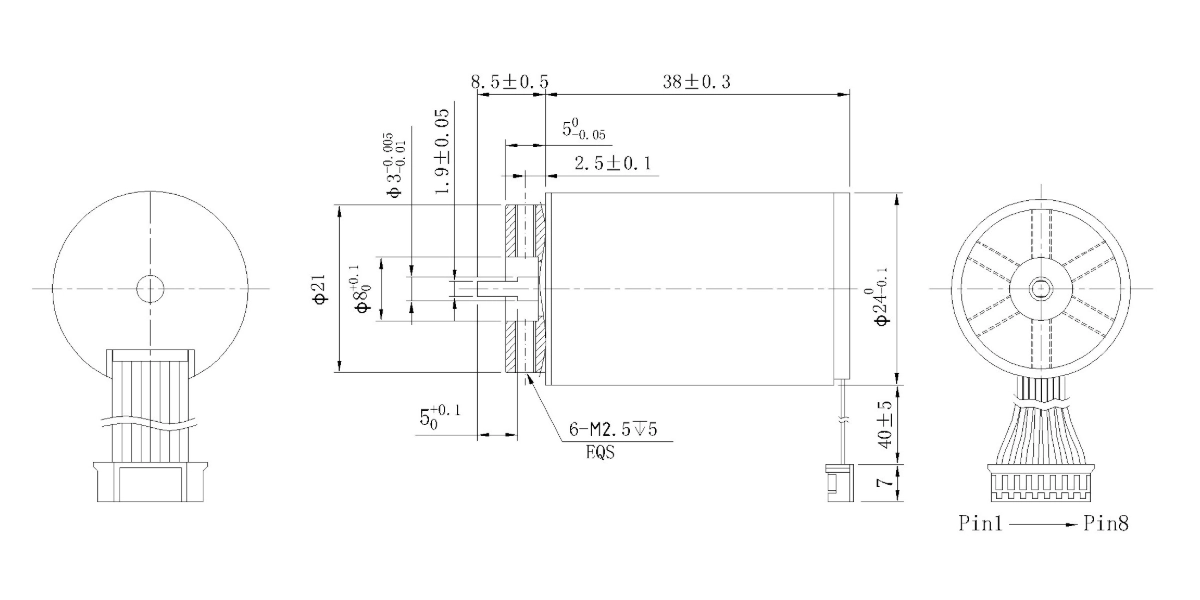

Mechanical Dimensions
Dimensions are in mm. Please refer to the datasheet for tolerances and mounting details.
Performance Parameters
| Motor specifications | 05A | 01A | 03A | 04A | |
|---|---|---|---|---|---|
| Nominal voltage | V | 24 | 30 | 30 | 32 |
| No load speed | rpm | 9000 | 19000 | 20500 | 17500 |
| No load current | mA | 100 | 90 | 110 | 90 |
| Nominal speed | rpm | 8100 | 17100 | 18500 | 15800 |
| Nominal torque | mNm | 6.49 | 14.33 | 16.39 | 13.04 |
| Nominal current | A | 0.35 | 1.03 | 1.27 | 0.83 |
| Stall torque | mNm | 68.4 | 150.8 | 172.5 | 137.3 |
| Stall current | A | 2.68 | 10 | 12.35 | 7.86 |
| Terminal resistance | Ω | 8.94 | 3 | 2.43 | 4.07 |
| Torque constant | mNm/A | 24.95 | 14.77 | 13.69 | 17.11 |
| Speed constant | rpm/V | 375 | 633 | 683 | 546 |
| Mechanical time constant | ms | 4.54 | 4.35 | 4.1 | 4.4 |
| Rotor inertia | gcm² | 3.45 | 3.45 | 3.45 | 3.45 |
Optical Gearbox
| N/A | |
|---|---|
Optional encoder
| N/A | |
|---|---|
Terminal data
| Terminal data | |
|---|---|
| Teminal model : |
Other Specifications
| Other specifications | |||
|---|---|---|---|
| Operating temperature range | -20…+80℃ | Bearing type | Ball bearings |
| Number of pole pairs | 1 | ||
| Number of phases | 3 |
Engineering Overview
FA-2438RB (Tool) is a power-tool-specialized coreless brushless DC motor optimized for handheld polishing, grinding and engraving equipment. It eliminates mechanical brush abrasion and iron core cogging torque, delivering ultra-smooth low-vibration rotation and long service life under frequent start-stop, impact and variable cutting loads. Reinforced double ball bearing structure greatly improves anti-shock and radial load capacity, effectively resisting vibration and dust interference during power tool operation. Larger rotor inertia provides stable torque output during material cutting and grinding. It covers wide high industrial voltage from 24V to 32V, matching mainstream lithium battery power tool power supply standards. Built-in hall sensors maintain consistent rotation speed under load fluctuations, while matched gearbox can convert to low-speed high-torque output for precision polishing tasks.
Typical Applications:
• Portable jade, metal and wood engraving carving tools
• Handheld dental polishing, manicure grinding equipment
• Mini industrial surface polishing and deburring power tools
• Cordless portable miniature grinding and sanding machines
Need power tool dedicated high-speed/high-torque winding customization?
FA-2438RB (Tool) 20W power tool coreless brushless DC motor adopts anti-vibration reinforced ball bearing design, with 24V/30V/32V multiple performance variants. Our engineering team can optimize coil, shaft and housing structure for your cordless handheld power tool working conditions.
