FA-2260RB Coreless Brushless DC Motor
The FA-2260RB is flagship 35W ultra-long coreless brushless DC motor with 22mm outer diameter and 60mm body length. It adopts heavy-duty double ball bearings for long-hour heavy-load continuous operation. Equipped with standard Molex 8Pin color-coded silicone wire terminal integrating 3-phase windings and 3-channel hall sensors. This model offers four industrial winding variants covering 12V, dual 24V and 30V grades with extreme torque & high-speed options. Optional G22MF planetary gearbox, incremental & absolute EM22 encoders for full closed-loop heavy-duty micro drive systems.
• Dimension: Φ22mm × Length 60mm
• Rated Power: 35W
• Voltage Options: 12V(07B) / 24V(04B/06B) / 30V(01B)
• Heavy-duty ball bearings + built-in 3-channel hall sensor
• Molex 8Pin 2.54mm color silicone wire terminal; Matching gearbox & multi-type encoders available

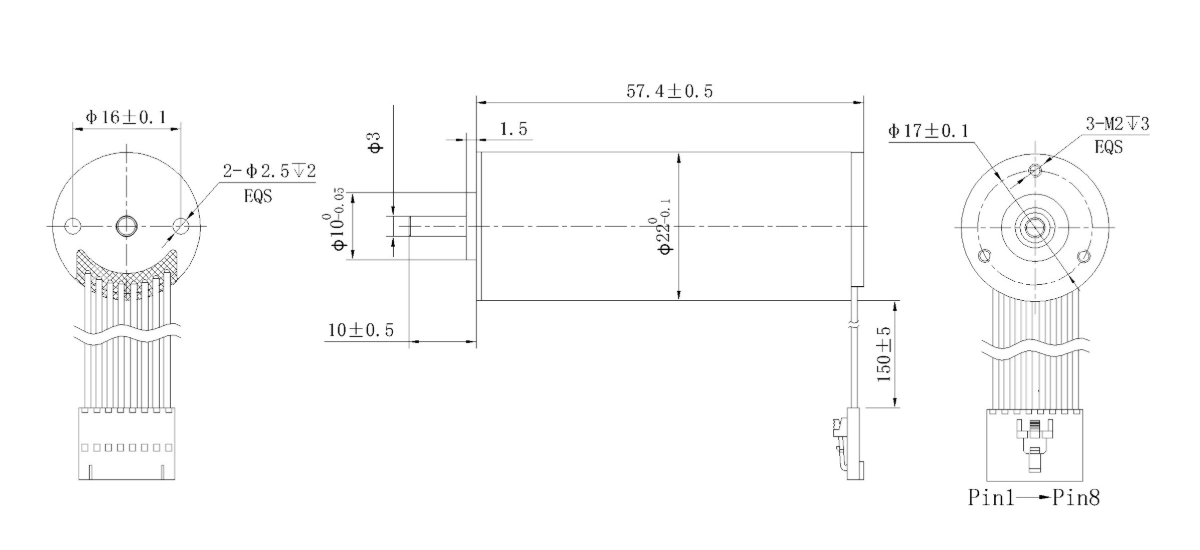

Mechanical Dimensions
Dimensions are in mm. Please refer to the datasheet for tolerances and mounting details.
Performance Parameters
| Motor specifications | 07B | 04B | 06B | 01B | |
|---|---|---|---|---|---|
| Nominal voltage | V | 12 | 24 | 24 | 30 |
| No load speed | rpm | 10000 | 23000 | 5500 | 38500 |
| No load current | mA | 120 | 160 | 60 | 450 |
| Nominal speed | rpm | 7600 | 17500 | 4200 | 34800 |
| Nominal torque | mNm | 33.32 | 52.53 | 15.86 | 51 |
| Nominal current | A | 2.94 | 5.28 | 0.42 | 7.36 |
| Stall torque | mNm | 141.8 | 223.5 | 67.5 | 544.5 |
| Stall current | A | 12.37 | 22.43 | 1.62 | 73.17 |
| Terminal resistance | Ω | 0.97 | 1.07 | 14.82 | 0.41 |
| Torque constant | mNm/A | 11.23 | 9.76 | 40.83 | 7.29 |
| Speed constant | rpm/V | 833 | 958 | 229 | 1283 |
| Mechanical time constant | ms | 1.78 | 2.6 | 2.06 | 1.79 |
| Rotor inertia | gcm² | 2.53 | 2.53 | 2.53 | 2.53 |
Optical Gearbox
| Optional gearbox | |
|---|---|
| G22MF | |
Optional encoder
| Optional encoder | |
|---|---|
| EM22 | 增量式(Incremental) 1~16384ppr 1~3通道(channel) |
| EM22 | 绝对式(Absolute) 21 bit single turn |
Terminal data
| Terminal data | ||
|---|---|---|
| Teminal model :Molex 16-02-0103 | 8Pin Molex 50-57-9048 3232 | 硅胶线 24AWG 间距2.54 |
| Pin 1电机绕组Motor winding 1 棕色Brown | Pin 2 电机绕组Motor winding 2 红色Red | Pin 3 电机绕组Motor winding 3 橙色Orange |
| Pin 4 霍尔传感器Hall Vcc 3.3~5V 黄色Yellow | Pin 5 霍尔传感器Hall GND 绿色Green | Pin 6 霍尔传感器Hall sensor 1 蓝色Blue |
| Pin 7 霍尔传感器Hall sensor 2 紫色Purple | Pin 8 霍尔传感器Hall sensor 3 灰色Gray |
Other Specifications
| Other specifications | |||
|---|---|---|---|
| Operating temperature range | -20…+80℃ | Bearing type | Ball bearings |
| Number of pole pairs | 1 | Weight of motor | 127g |
| Number of phases | 3 |
Engineering Overview
FA-2260RB flagship 35W coreless brushless DC motor eliminates iron cogging torque and brush mechanical abrasion, delivering ultra-smooth low-vibration rotation, low EMI interference and ultra-long service life. Double heavy ball bearing structure greatly improves radial load resistance, stable under continuous heavy-duty operation. Low mechanical time constant & moderate rotor inertia enable ultra-fast acceleration/deceleration under frequent start-stop cycles. Wide industrial voltage coverage (12V/24V/30V) covers low-speed high-torque and ultra-high-speed heavy-load working modes. Complete matching portfolio including planetary gearbox and dual-type encoders supports high-precision closed-loop torque, speed and position control for high-end industrial micro equipment.
Typical Applications:
• Heavy-load humanoid robot joint actuators
• High-power medical surgical handheld instruments
• Industrial miniature high-torque transmission modules
• High-precision laboratory polishing & grinding equipment
• Portable high-speed carving & engraving power tools
Need full gearbox & encoder matching or multi-voltage winding customization?
FA-2260RB 35W flagship ultra-long coreless brushless DC motor provides 12V/24V/30V multi performance variants, with dedicated G22MF gearbox & EM22 incremental/absolute encoders as options. Our engineering team optimizes coil, shaft and wiring based on your heavy-load continuous operation demands.
