FA-2060RB Coreless Brushless DC Motor
The FA-2060RB is an ultra-long high-power 20W coreless brushless DC motor with 20mm outer diameter and 60mm body length. It adopts heavy-duty ball bearings to support long-term heavy-load continuous operation. This model comes with four industrial winding versions covering 12V, 24V and 36V voltage grades, featuring pure 3-phase independent winding terminal layout without hall integrated pins. Custom planetary gearbox and incremental/absolute encoder are optional to realize heavy-duty closed-loop precision drive for industrial micro actuators.
• Dimension: Φ20mm × Length 60mm
• Rated Power: 20W
• Voltage Options: 12V(19A) / 24V(12C/32C) / 36V(09C)
• Heavy-duty ball bearings + 3-phase coreless rotor design
• 3 independent winding wires; Optional gearbox & encoder

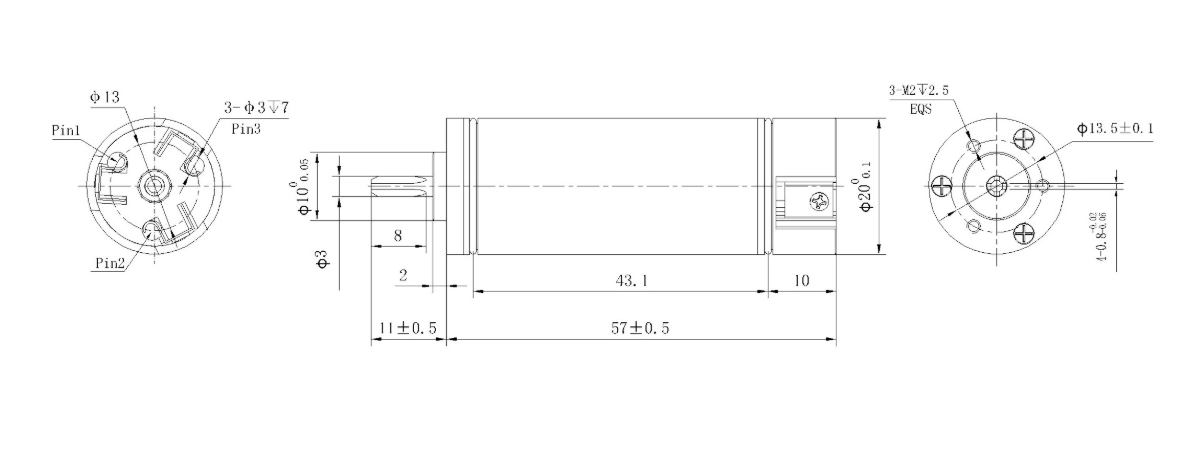

Mechanical Dimensions
Dimensions are in mm. Please refer to the datasheet for tolerances and mounting details.
Performance Parameters
| Motor specifications | 19A | 38C | 12C | 38B | |
|---|---|---|---|---|---|
| Nominal voltage | V | 12 | 24 | 36 | 36 |
| No load speed | rpm | 28000 | 39000 | 47000 | 52000 |
| No load current | mA | 200 | 100 | 80 | 80 |
| Nominal speed | rpm | 24300 | 33900 | 40800 | 45200 |
| Nominal torque | mNm | 17.7 | 9.7 | 14 | 17.29 |
| Nominal current | A | 4.51 | 1.74 | 2 | 2.68 |
| Stall torque | mNm | 136.4 | 74.6 | 108.4 | 133 |
| Stall current | A | 33.33 | 12.7 | 14.81 | 20.11 |
| Terminal resistance | Ω | 0.36 | 1.89 | 2.43 | 1.79 |
| Torque constant | mNm/A | 4.01 | 5.76 | 7.16 | 6.47 |
| Speed constant | rpm/V | 2333 | 1625 | 1305 | 1444 |
| Mechanical time constant | ms | 2.12 | 3.16 | 2.62 | 3.12 |
| Rotor inertia | gcm² | 1.04 | 0.6 | 0.6 | 0.8 |
Optical Gearbox
| N/A | |
|---|---|
Optional encoder
| N/A | |
|---|---|
Terminal data
| Terminal data | ||
|---|---|---|
| Teminal model : | ||
| Pin 1 电机绕组 Motor winding 1 | Pin 2 电机绕组 Motor winding 2 | Pin 3 电机绕组 Motor winding 3 |
Other Specifications
| Other specifications | |||
|---|---|---|---|
| Operating temperature range | -20…+80℃ | Bearing type | Ball bearings |
| Number of pole pairs | 1 | Weight of motor | 69.6g |
| Number of phases | 3 |
Engineering Overview
FA-2060RB ultra-long 20W coreless brushless DC motor completely eliminates iron cogging torque and mechanical brush abrasion, realizing ultra-smooth low-vibration rotation and extremely long continuous service life with low electromagnetic interference. The thickened ball bearing structure greatly improves radial load resistance, making it suitable for high-speed impact working scenarios. Low rotor inertia delivers ultra-fast acceleration and deceleration response under frequent start-stop cycles. Multi industrial voltage options (12V/24V/36V) match mainstream industrial power supply standards, and huge stall torque provides powerful overload capacity. Matched gearbox amplifies output torque for heavy-load micro robots, dental polishing equipment and portable carving power tools.
Typical Applications:
• Heavy-load micro robot joint actuators
• Dental polishing & manicure grinding handheld equipment
• Mini jade carving and engraving power tools
• Industrial miniature automated transmission modules
